Mindman MVBA series

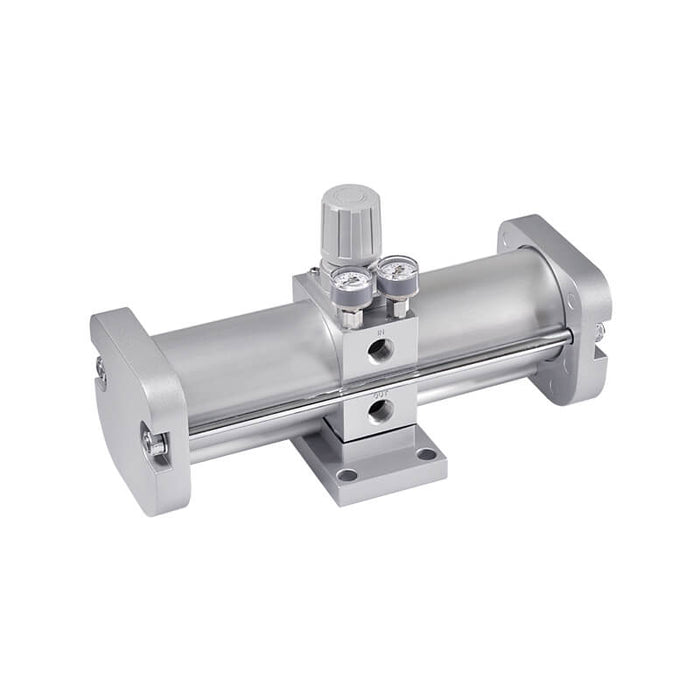

Mindman MVBA-2100 Booster Regulator

SKU MVBA-2100-NPT
by Mindman
$1,020.02 - $1,022.46
$1,020.02
$1,020.02 - $1,022.46
$1,020.02
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MVBA-2100 air booster regulator.

Select the options below; the full Mindman ordering code is shown as the SKU (MVBA-2100-[option]-[thread]).

Price is the Mindman list price.

Specifications

Specification 2100, 4100, 4300
Port size (IN, OUT, EXH) 3/8, 1/2, 1/2
Gauge port (IN, OUT) 1/16, 1/8, 1/8
Air tank port 1/4, 1/2, 1/2
Medium Compressed air
Pressure increase rate Maximum of twice
Operating pressure range (※1) 0.2~1 MPa, 0.2~1.6 MPa
Supply pressure range 0.1~1 MPa
Proof pressure 1.5 MPa, 2.4 MPa
Max. flow rate (※2) 1600 l/min
Ambient temperature +2~+50°C (No freezing)
Installation Horizontal
Lubrication Not required
Attachment: Pressure gauge PG-25, PG-25, PG-40W-20K
Option: Silencer (S) MSLT-03, MSLT-04
Suitable for air tank (※3) MVBA-2100: MVBAT10A, MVBAT20A, MVBAT21B; MVBA-4100: MVBAT21C; MVBA-4300: MVBAT22HC
Weight 3.9, 9.4, 9.5 kg
Remark ※1. Do not adjust the pressure beyond the maximum specified pressure range.; ※2. Max. flow rate at IN=OUT=0.5 MPa.; ※3. Please refer to the MVBAT series.; ※4. Attachment and optional accessories are included with the shipment separately and are not pre-assembled.
Series Mindman MVBA

No additional information at this time.
