Mindman MSLL series

Mindman MSLL-40-30 Stopper Cylinder, ø40 mm, 30 mm Stroke

SKU MSLL-40-30-NPT
by Mindman
$302.60 - $302.60
$302.60
$302.60 - $302.60
$302.60
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

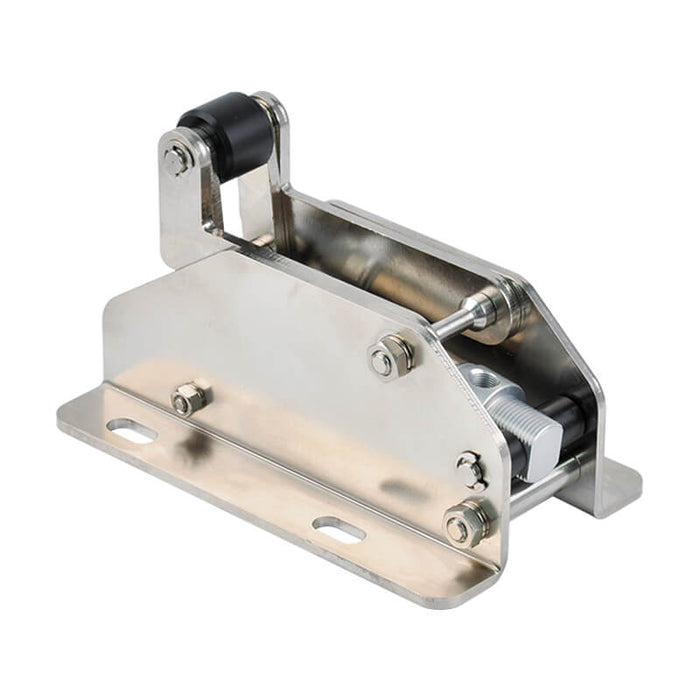

Mindman MSLL series stopper cylinder, ø40 mm bore, 30 mm stroke.

Select the options below; the full Mindman ordering code is shown as the SKU (MSLL-40-30-[operation]-[thread]).

Price is the Mindman list price.

Specifications

Operation type Double acting without spring, Stopper with roller /; Double acting with spring Stopper with roller (Option)
Standard stroke φ25-30 / φ40-30
Medium Air
Operating pressure range 0.2~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Magnet φ25-30: Without magnet / φ40-30: With magnet
Sensor switch RCM, (With BM40 Band)
Weight 8750 g
Series Mindman MSLL
