Mindman MSLD series

Mindman MSLD-50-50 Stopper Cylinder, ø50 mm, 50 mm Stroke

SKU MSLD-50-50-NPT
by Mindman
$770.68 - $770.68
$770.68
$770.68 - $770.68
$770.68
Availability:
In stock
Availability:
In stock
Availability:
In stock

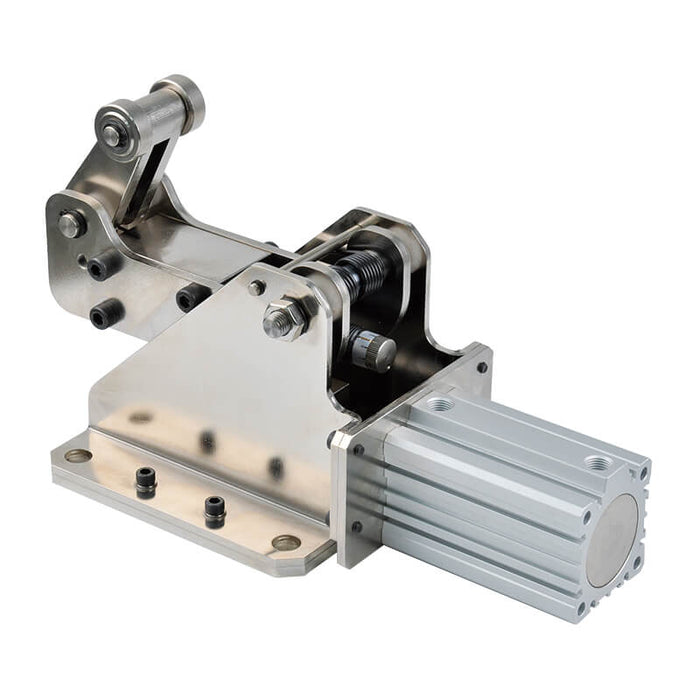

Mindman MSLD series stopper cylinder (double acting with spring and shock absorber), ø50 mm bore, 50 mm stroke.

Select the options below; the full Mindman ordering code is shown as the SKU (MSLD-50-50-[thread]).

Price is the Mindman list price.

Specifications

Operation type Double acting with spring, Shockless stopper
Standard stroke φ50-50
Medium Air
Operating pressure range 0.2~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Magnet Standard with magnet
Sensor switch RCE, RCE1, RDEP
Weight 8750 g
Series Mindman MSLD
