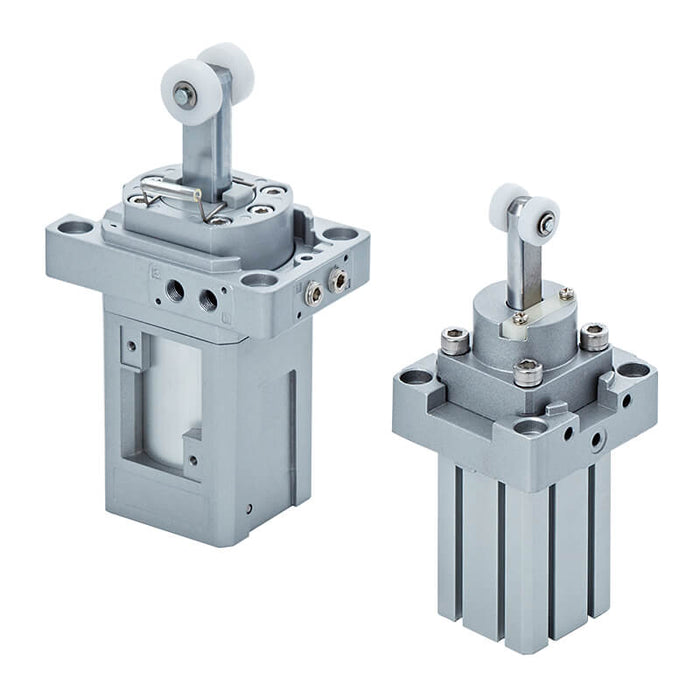

Mindman MSBR series stopper cylinder with roller, ø20 mm bore, 20 mm stroke.

Select the options below; the full Mindman ordering code is shown as the SKU (MSBR-20-20).

ø20 has M5×0.8 ports.

Price is the Mindman list price.

Specifications

Operation type Single acting (Spring extended), Stopper with roller
Standard stroke φ20-20, φ32-20, φ40-30, φ50-30
Medium Air
Operating pressure range 0.2~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Magnet φ20-20, φ32-20: With magnet; φ40-30, φ50-30: Without magnet
Sensor switch RCB, RCE, RCE1, RDEP
Weight 250g, 740g, 1400g, 1800g
Series Mindman MSBR
