Mindman MSBD series

Mindman MSBD-80-40 Stopper Cylinder, ø80 mm, 40 mm Stroke

SKU MSBD-80-40-NPT
by Mindman
$935.02 - $935.02
$935.02
$935.02 - $935.02
$935.02
Availability:
In stock
Availability:
In stock
Availability:
In stock

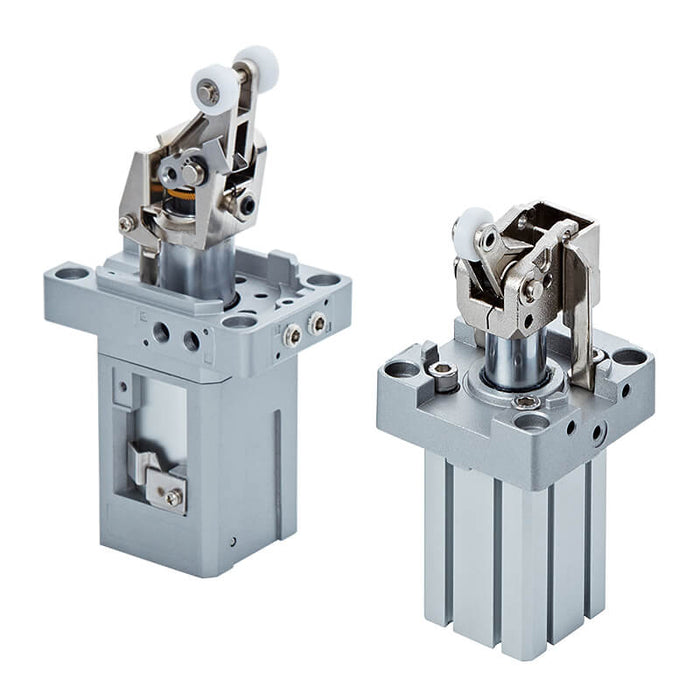

Mindman MSBD series shockless stopper cylinder (double acting with spring), ø80 mm bore, 40 mm stroke.

Select the options below; the full Mindman ordering code is shown as the SKU (MSBD-80-40-[thread]).

Price is the Mindman list price.

Specifications

Operation type Double acting with spring (φ32-20), Shockless stopper (φ50-30,φ63-30,φ80-40)
Standard stroke φ32-20,φ50-30,φ63-30,φ80-40
Medium Air
Operating pressure range 0.2~1 MPa
Proof pressure 1.5 MPa
Ambient temperature －5~＋60℃ (No freezing)
Lubrication Not required
Cushion With rubber cushion pad
Magnet Standard with magnet
Sensor switch RCA for φ50, RCB, RCE, RCE1, RDEP
Sensor switch holder HS
Weight 740g, 1800g, 3680g, 6820g
Series Mindman MSBD
