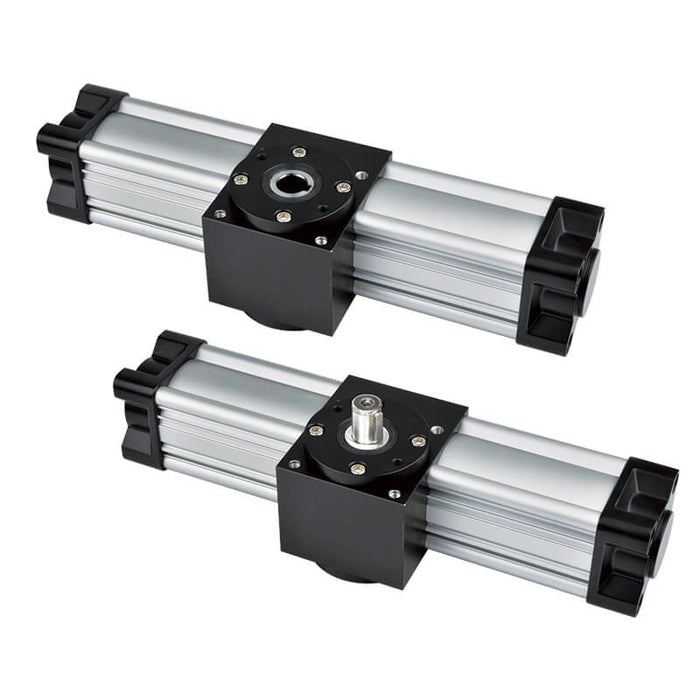

Mindman MRT series

Mindman MRTH-40 Rotary Actuator, ø40 mm Bore

SKU MRTH-40-90
by Mindman
$673.34 - $798.28
$673.34
$673.34 - $798.28
$673.34
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MRTH series rack-and-pinion rotary actuator, ø40 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MRTH-40-[rotation][-D]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Model MRTF, MRTH, MRTH-D
Tube I.D. (mm) 40, 63, 80
Standard rotation 90±5°, 180±5°
Rotating shaft dia. (mm) 16, 24, 28
Initial position of slot (mm) See dimensional feature
Medium Filtered air with or without lubrication
Operating pressure range 0.13~0.7 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Max. allowable axial thrust (kg) 10, 12, 20
Cushion angle 74°, 75°, 80°
Max. allowable kinetic energy 90°: 0.266J, 0.675J, 1.34J, 180°: 0.58J, 1.54J, 3.03J
Max. allowable radial trust (Fr) 514.5N, 725.2N, 896.7N
Sensor switch φ 40, 63: LN65, φ 80: LN03A
Series Mindman MRT

No additional information at this time.
