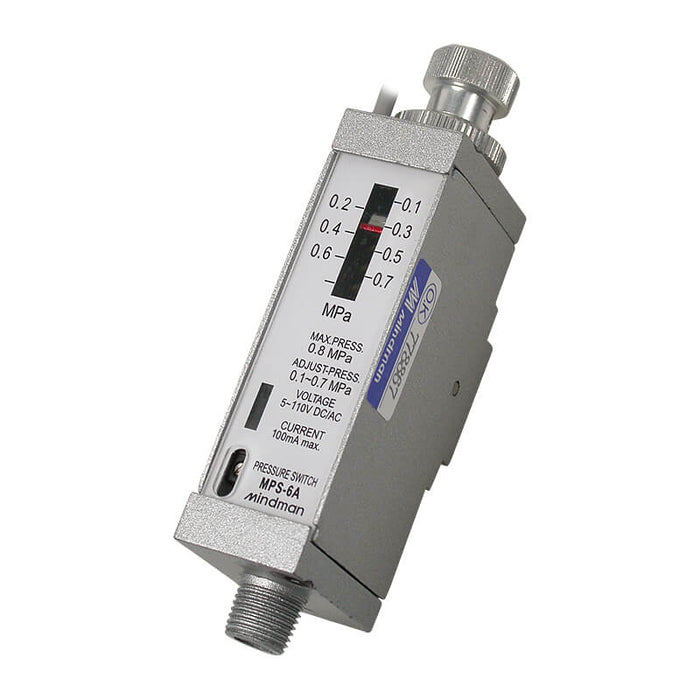

MPS series (Pressure Switch for MA**-401 series).

Specifications

Fitting method R1/8 (for pipe-thread fitting), O-ring:S4 (for O-ring fitting)
Operating pressure range 0.8 MPa
Proof pressure 1 MPa
Pressure setting range 0.1~0.7 MPa
Ambient temperature －5~＋60℃ (No freezing)
Operation output Normal open; ON (Red led lighting up) above value
Sensor switch RCE2; Reed switch / Normal open; Voltage range:5~110V DC/AC; Max. Current:100mA
Weight 185g, 189g (R type)
Series Mindman MPS
