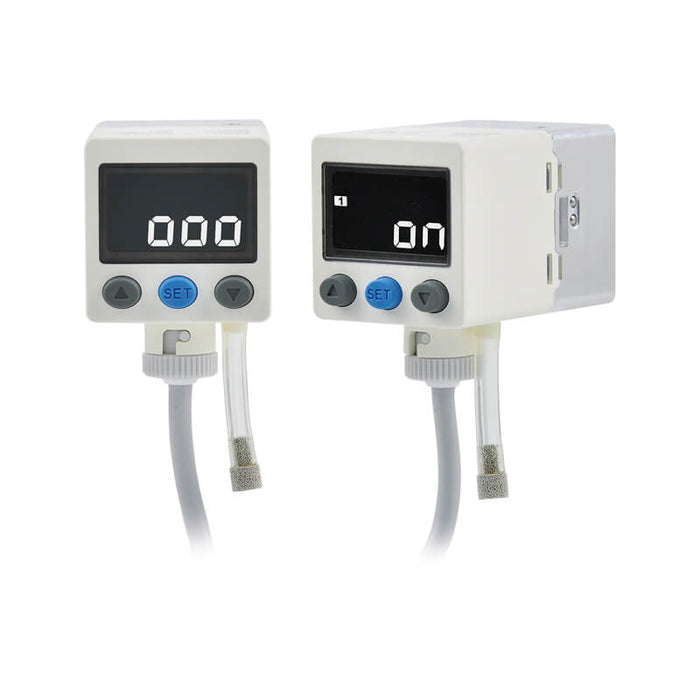

MPGS series (Gap sensor).

1 NPN output

Specifications

Detection Distance 0.01 ~ 0.10 mm
Operating Pressure Range 250 ~ 350 kPa
Withstand Pressure 600 kPa
Fluid Clean air, Non-corrosive / Non-flammable gas
Power Supply Voltage 12 ~ 24V DC ± 10 %, Ripple (P-P) ≤ 10 %
Current Consumption ≤ 20 mA
Consumption Flow Rate ≤ 16 L/min @ 300 kPa
Repeatability ±5 μm
Hysteresis Adjustable 1 ~ 30 digits
Output Short Circuit Protection Yes
Display 3 ½ digital, 7 segment LCD display (White) (Sampling rate: 5 times / sec.)
Switch on Indicator White Indicator 1: OUT
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 3 cores
Weight (with 2 meter lead wire) Approx. 115 g
Series Mindman MPGS
