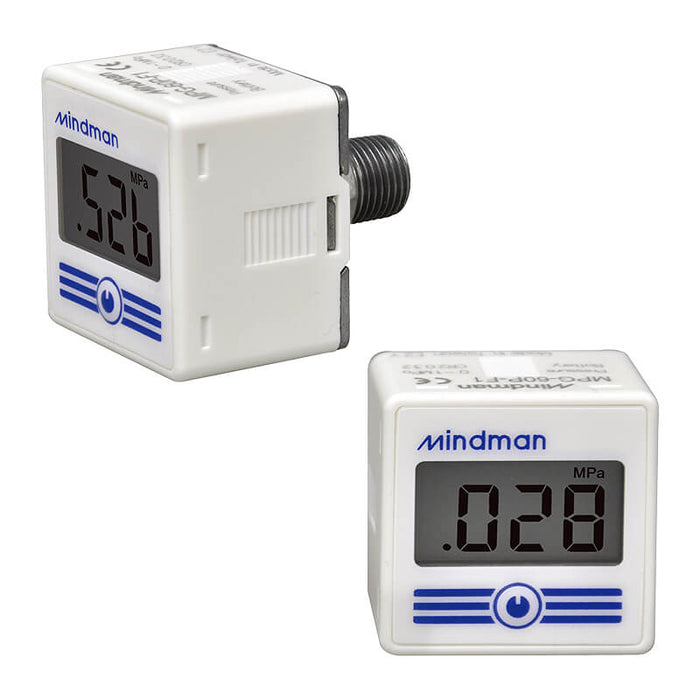

MPG-60 series (Digital Pressure Gauge).

Positive, Back light available

Specifications

Port size F1: R1/8”,M5; F2: NPT1/8”,10-32UNF; F3: G1/8”,M5; F4: R1/4”,M5; F5: NPT1/4”, 10-32UNF; F6:G1/4”,M5
Pressure unit MPa, kgf/cm², psi, bar
Operating pressure range 0 ~ 1 MPa
Medium Air, Non-corrosive gases,incombustible gases
Proof pressure 1.5 MPa
Battery / Battery replaceable CR 2032 lithium / Yes
Battery life 3 years (5 times/day),L type: 1 year (5 times/day)
Low-power indicator Yes
Turn-on interval Display turn off after 60 sec.
Sampling rate 2 Hz (2 times/sec.)
Indicator accuracy ±2% F.S. ±1 digit (Ambient temperature: 25 ±3 °C)
Repeatability ≦±0.2% F.S. ±1digit
Indicator 7 segment, 3-1/2 digit
Ambient temp. range Operation: 0 ~ 50 °C, storage: -10 ~ 60 °C(No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Vibration Total amplitude 1.5mm or 10G, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
Shock 100m/s² (10G), 3 times each in direction of X, Y and Z
Temperature characteristic ±2% F.S. of detected pressure (25°C) at temp. range of 0~50°C
Weight Approx. 40g
Series Mindman MPG-60
