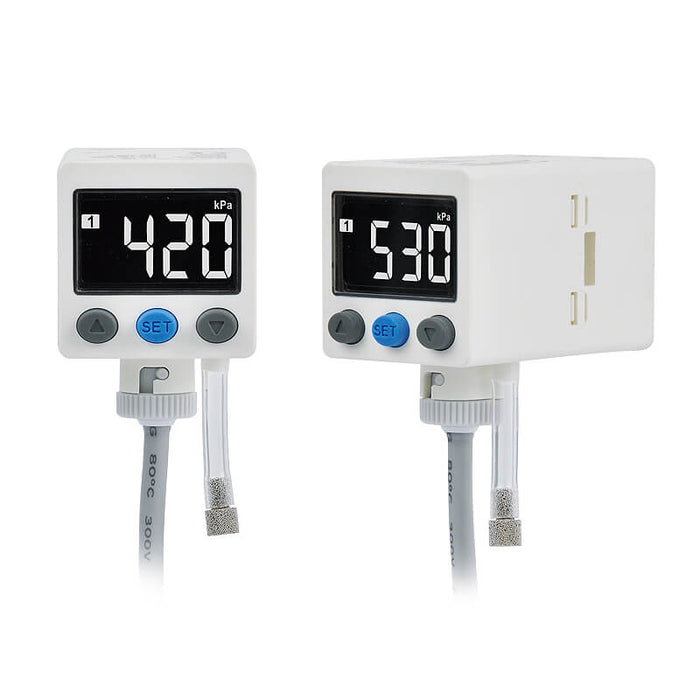

Mindman MPDS-P-02-M5 Pressure Sensor - Positive, 1 NPN output + RS485

SKU MPDS-P-02-M5
by Mindman
$141.09 - $141.09
$141.09
$141.09 - $141.09
$141.09
Availability:
In stock

MPDS series (High Differential Pressure Sensor).

Positive, 1 NPN output + RS485

Specifications

Rated pressure range –1000 ~ 1000 kPa
Operating pressure range 0 ~ 1000 kPa
Withstand pressure 1200 kPa
Fluid Filtered air, Non-corrosive / Non-flammable gas
Power supply voltage 12 ~ 24 V DC ± 10 %, Ripple (P-P) ≤ 10 %
Current consumption ≤ 20 mA
Communication interface RS485 RTU
Port size M5: M5 female thread
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores
Weight (with 2 meter lead wire) Approx. 104 g
Series Mindman MPDS
