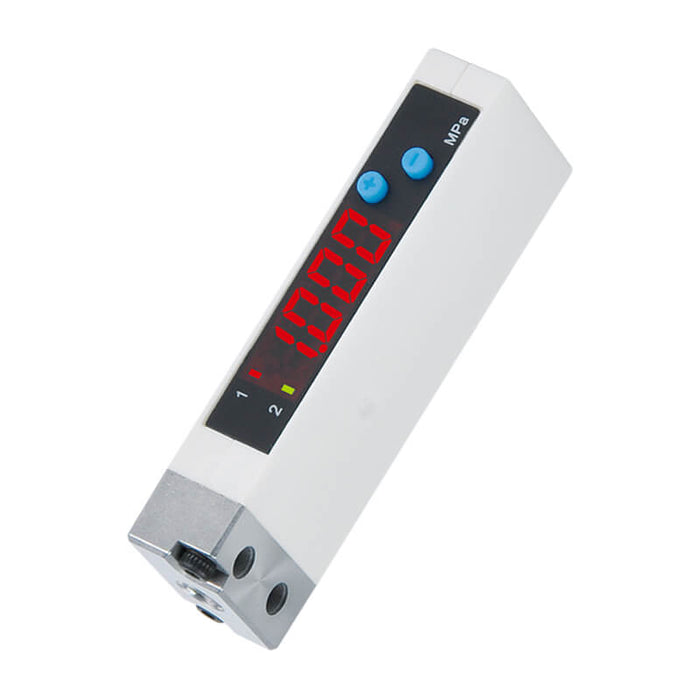

Mindman MP90P-030-M5 Pressure Switch - Positive, 2 PNP output & Analog output ( 1 ~ 5 V )

SKU MP90P-030-M5
by Mindman
$145.79 - $145.79
$145.79
$145.79 - $145.79
$145.79
Availability:
In stock

MP90 series (Slim Pressure Switch).

Positive, 2 PNP output & Analog output ( 1 ~ 5 V )

Specifications

Rated pressure range 0 ~ 1.0 MPa (Positive); －101.3 ~ 0.0 kPa (Vacuum); －100.0~100.0 kPa (Compound)
Setting pressure range －0.1 ~ 1.0 MPa (Positive); －101.3 ~ 10.0 kPa (Vacuum); －101.0~101.0 kPa (Compound)
Allowable pressure 1.5 MPa (Positive); 500 kPa (Vacuum) (Compound)
Fluid Filtered Air, Non-corrosive / Non-flammable gas
Power supply voltage 12 to 24V DC ±10%, Ripple (P-P) 10% or less
Current consumption ≦ 40mA (With no load)
Switch output 2 NPN: open collector 2 outputs Max. Load Current: 125 mA; Max. Supply Voltage: 30 V DC Residual Voltage: ≤ 1.5 V; 2 PNP: open collector 2 outputs Max. Load Current: 125 mA; Max. Supply Voltage: 24 V DC Residual Voltage: ≤ 1.5 V
Repeatability ±0.2% F.S.±1 digit
Hysteresis Hysteresis Mode: Adjustable; Window Comparator Mode: Fixed (3 digits)
Response time ≤ 2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selectable)
Output short circuit protection Yes
Display 4 digit, 7 segment LED display (Red) (Sampling rate: 5 times / sec.)
Indicator accuracy ±2% F.S. ±1 digit (Ambient temperature: 25 ± 3°C)
Switch on indicator Indicator Red: OUT1 & Indicator Green: OUT2
Analog Output (Voltage Output) Output Voltage: 1 ~ 5 V ± 2.5 % F.S. (within rated pressure range); Linearity: ± 1 % F.S. Output Impedance: about 1 kΩ
Environment-Enclosure IP40
Environment-Ambient temp. range Operation: 0 ~ 50°C, storage: ─10 ~ 60°C (No condensation or freezing)
Environment-Ambient humidity range Operation / Storage: 35 ~ 85% RH (No condensation)
Environment-Withstand voltage 1000V AC in 1-min. (between case and lead wire)
Environment-Insulation resistance ≥ 50MΩ (at 500V DC, between case and lead wire)
Environment-Vibration Total amplitude 1.5mm or 10G,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
Environment-Shock 980 m/s² (100G), 3 times each in direction of X, Y and Z
Tmperature charateristic ±2% F.S. of detected pressure (25°C) at temp. range of 0 ~ 50°C
Port size M5
Lead wire ø3.8 Oil-resistance cable (PVC) - 26 AWG (0.15 mm2) - 5 cores
Weight (with 2 meter lead wire) Approx. 53 g
Series Mindman MP90
