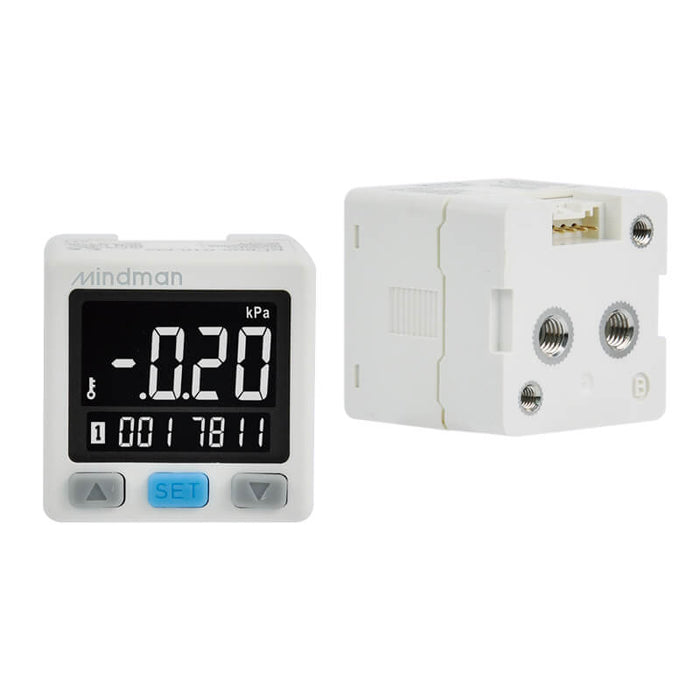

Mindman MP802-031-M5 Pressure Sensor - 2 PNP output + 1 Analog output (4~20mA)

SKU MP802-031-M5
by Mindman
$203.17 - $203.17
$203.17
$203.17 - $203.17
$203.17
Availability:
In stock

MP800 series (Differential pressure sensor).

2 PNP output + 1 Analog output (4~20mA)

Specifications

Rated pressure range 0~1000 Pa (MP801), -1000~1000 Pa (MP811), 0.00~2.00 kPa (MP802), -2.00~2.00 kPa (MP812), 0.0~5.00 kPa (MP805), -5.00~5.00 kPa (MP815)
Set Pressure Range -100~1000 Pa, -1000~1000 Pa, -0.20~2.00 kPa, -2.00~2.00 kPa, -0.50~5.00 kPa, -5.00~5.00 kPa
Fluid Filtered air, Non-corrosive / Non-flammable gas
Power supply voltage 12 ~ 24V DC ± 10 %, Ripple (P-P) ≤ 10 %
Current consumption ≤ 40 mA (with no load)
Port size M5: M5 female thread
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores
Withstand pressure 3 kPa, 6 kPa, 15 kPa
Set pressure Resolution Pa: 1; kPa: 0.01
Switch output 2 NPN: open collector 2 outputs Max. Load Current: 125 mA; Max. Supply Voltage: 30V DC Residual Voltage: ≤ 1.5V; 2 PNP: open collector 2 outputs Max. Load Current: 125 mA; Max. Supply Voltage: 24V DC Residual Voltage: ≤ 1.5 V
Display 3 ½ digital, 7 segment LCD display (White) (Sampling rate: 5 times / sec.)
Switch on indicator White Indicator 1: OUT1 & White Indicator 2: OUT2
Analog Output (Voltage Output) (※1) Output Voltage: 1 ~ 5V ± 2.5 % F.S. (within rated pressure range); Linearity: ± 1 % F.S. Output Impedance: about 1 kΩ
Analog output (Current Output) (※2) Output Current: 4 ~ 20 mA ± 2.5 % F.S. (within rated pressure range) Linearity: ± 1 % F.S.; Max. Load Impedance: 250 Ω at power supply of 12 V, 600 Ω at power supply of 24V Min. Load Impedance: 50 Ω
Remark ※1.If analog voltage output is selected, the analog current output cannot be selected at the same time.; ※2.If analog current output is selected, the analog voltage output cannot be selected at the same time.
