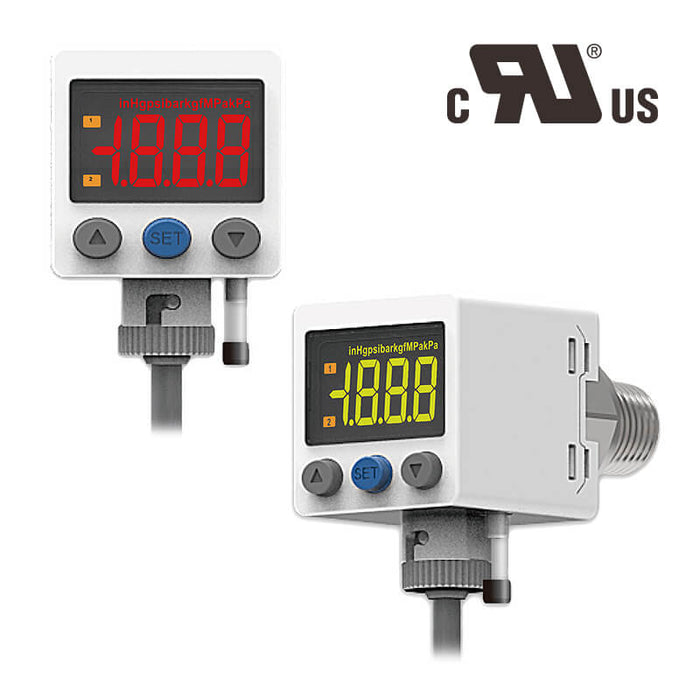

Mindman MP75A series

Mindman MP75H02-02-F3L Pressure Switch - High, NPN output + RS485, bottom ported

SKU MP75H02-02-F3L
by Mindman
$398.83 - $398.83
$398.83
$398.83 - $398.83
$398.83
Availability:
In stock

MP75 series (Pressure Switch).

High, NPN output + RS485, bottom ported

Specifications

Fluid Liquids or gases that do not corrode SUS316L
Port size F1: R1/4", M5; F2: NPT1/4", #10-32 UNF; F3: G1/4"(BSPP), M5
Rated pressure range 0 ~ 1.0 MPa (Positive); 0.0 ~ 2.0 MPa (High); －101.3 ~ 0.0 kPa (vacuum); －100.0~100.0 kPa (Compound)
Operating / Setting pressure range －0.1 ~ 1.0 MPa (Positive); －0.1 ~ 2.0 MPa (High); －101.3 ~ 10.0 kPa (vacuum); －101.0~101.0 kPa (Compound)
Power supply voltage 12 to 24V DC ±10%, Ripple (P-P) 10% or less
Indicator accuracy ≦±2%F.S. ±1 digit (ambient temperature: 25 ±3℃)
Response time ≦2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms and 1500ms selections)
Switch output NPN: open collector 2 outputs Max. load current: 125mA Max. supply voltage: 30V DC Residual voltage: ≦1.5V; PNP: open collector 2 outputs Max. load current: 125mA Max. supply voltage: 24V DC; Residual voltage: ≦1.5V
Repeatability (Switch output) ±0.3% F.S. ±1 digit
Hysteresis Adjustable (※1)
Current consumption ≦ 45mA (With no load)
Output short circuit protection Yes
7 segment LCD display 3 1/2 digit, 7 segment (red/green)
Analog output (Voltage Output) ※2 Output Voltage: 1 to 5V ±2.5%F.S. (within rated pressure range); Linearity: ±1% F.S.; Output impedance: about 1kΩ
Analog output (Current Output) ※3 Output Current: 4 to 20mA ≦±2.5%F.S. (within rated pressure range); Linearity: ±1% F.S.; Max.Load Impedance: 250Ω at power supply of 12V, 600Ω at power supply of 24V; OutputMin.Load impedance: 50Ω
Enclosure IP65
Ambient temp. range Operation: 0 ~ 50℃, storage:－10 ~ 60℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 250V AC in 1-min. (between case and lead wire)
Insulation resistance 50MΩ (at 500V DC, between case and lead wire)
Vibration Total amplitude 1.5mm or 10G,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Z
Shock 100m/s2 (10G), 3 times each in direction of X, Y and Z
Temperature characteristic ±3% F.S. of detected pressure 25℃ (range of 0 ~ 50℃)
Lead wire Oil-resistance cable (0.15mm2)
Weight Approx. 110g (with 2 meter lead wire)
Remark ※1. Hysteresis value is adjustable within 1~8 digits for one point set and window comparator mode.; ※2. If analog voltage output is selected, the analog current output cannot be selected at the same time.; ※3. If analog current output is selected, the analog voltage output cannot be selected at the same time.
Series Mindman MP75A
