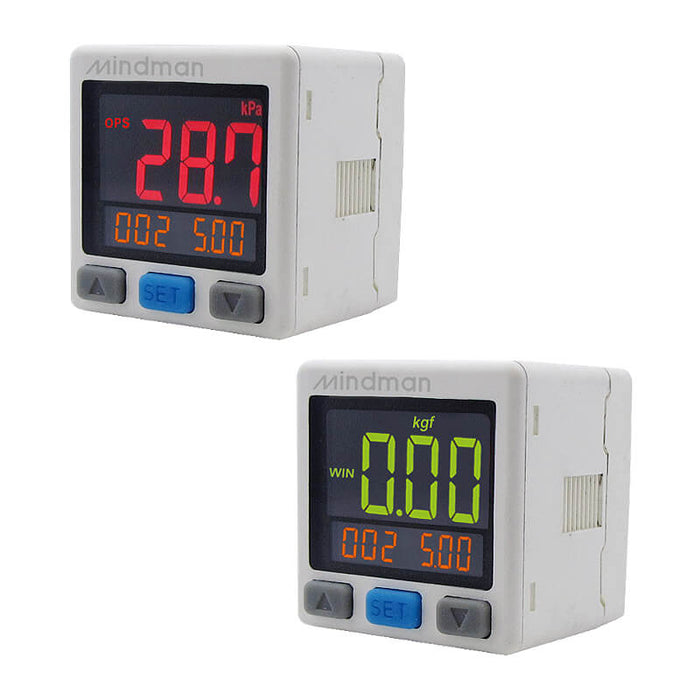

Mindman MP70P-02-F3 Pressure Switch - Positive,1 NPN output + RS485,G1/8"/M5x0.8

SKU MP70P-02-F3
by Mindman
$135.63 - $135.63
$135.63
$135.63 - $135.63
$135.63
Availability:
In stock

MP70 series (Pressure Switch).

Positive,1 NPN output + RS485,G1/8"/M5x0.8

Specifications

Port size (Male / Female thread) R1/8"/M5; NPT1/8"/#10-32 UNF; G1/8"/M5
Rated pressure range 0 ~ 1.0 MPa (Positive); －101.3 ~ 0.0 kPa (Vacuum); －100.0 ~ 100.0 kPa (Compound)
Set pressure range －0.1 ~ 1.0 MPa (Positive); －101.3 ~ 10.0 kPa (Vacuum); －101.0 ~ 101.0 kPa (Compound)
Fluid Air, Non-corrosive / Non-flammable gas
Power supply voltage 12~24V DC ±10%, Ripple (P-P) 10% or less
Current consumption ≦ 40mA (without load)
Switch output NPN: open collector 1 outputs / Max. load current: 125mA; Max. supply voltage: 30V DC / Residual voltage: ≦1.5V; PNP: open collector 1 outputs / Max. load current: 125mA; Max. supply voltage: 24V DC / Residual voltage: ≦1.5V
Output short circuit protection Yes
Repeatability (Switch output) ≤ ± 0.2% F.S. ±1 digit
Hysteresis Adjustable (※1)
Response time ≦2.5ms (※2)
7 segment LCD display 4 digital, 7 segment LCD display (Red / Green / Orange); (Sampling rate: 0.2, 0.5, 1 seconds / time selectable)
Indicator accuracy ±2% F.S. ±1 digit (ambient temperature: 25±3℃)
Switch ON Indicator Orange indicator 1: OUT
Enclosure IP40
Ambient temp. range Operation: 0~50℃, storage: –10~60℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35~85% RH (No condensation)
Withstand voltage 1000V AC in 1-min. (between case and lead wire)
Insulation resistance 50MΩ min. (at 500V DC, between case and lead wire)
Vibration Total amplitude 1.5mm or 10G,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock 100m/s² (10G), 3 times each in direction of X, Y and Z
Temperature characteristic ±2.5% F.S. of detected pressure (25℃) at temp. Range of 0~50℃
Communication interface RS–485 (※3)
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores
Weight Appro.80g (with 2-meter lead wire)
Remark ※1.Hysteresis value is adjustable within 1~8 digits for one point set mode and window comparator mode.; ※2.Chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms, 2000ms and 5000ms selections.; ※3.Read pressure sensor data range 1~4 data number.
Series Mindman MP70
