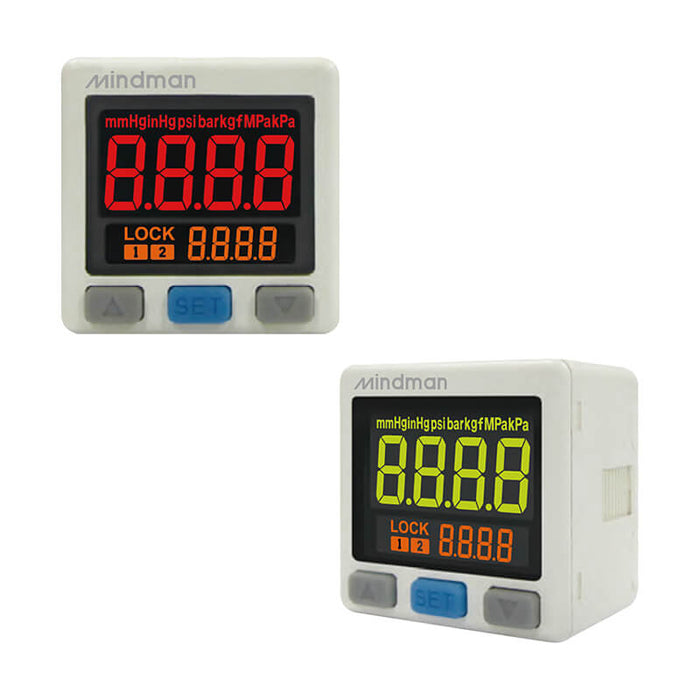

Mindman MP47 series

Mindman MP47C-01-M5 Pressure Switch - Compound, 1 NPN output + Analog output (1~5V)

SKU MP47C-01-M5
by Mindman
$56.51 - $56.51
$56.51
$56.51 - $56.51
$56.51
Availability:
In stock

MP47 series (Pressure Switch).

Compound, 1 NPN output + Analog output (1~5V)

Specifications

Port size F1: R1/8", M5×0.8; F2: NPT1/8",#10-32UNF; F3: G1/8"(BSPP), M5×0.8; M5 female thread
Rated pressure range －0.1 ~ 1.0 MPa (Positive); －101.3 ~ 0 kPa (Vacuum); －100 ~ 100 kPa (Compound)
Operating / Setting pressure range －0.103 ~ 1.03 MPa (Positive); －103 ~ 10 kPa (Vacuum); －103 ~ 103 kPa (Compound)
Proof pressure 1.5 MPa (Positive), 500 kPa (Vacuum, Compound)
Medium Filtered air, Non-corrosive / Non-flammable gas
Power supply voltage 12~24V DC ±10%, Ripple (P-P) 10% or less
Current consumption ≦ 30mA (With no load)
Switch output NPN: open collector outputs; Max. load current: 80mA; Max. supply voltage: 30V DC; Residual voltage: ≤ 1V; PNP: open collector outputs; Max. load current: 80mA; Max. supply voltage: 24V DC; Residual voltage: ≤ 1V
Hysteresis Adjustable (※1)
Response time ≦2.5ms (chattering-proof function: 25ms, 100ms, 250ms, 500ms, 1000ms, 1500ms selectable)
Output short circuit protection Yes
Display 4 digital, 7 segment LCD display (Red / Green / Orange) (Sampling rate: 0.2, 0.5, 1 sec. / time)
Indicator accuracy ±1% F.S. ±1 digit (ambient temperature: 25 ± 3°C)
Repeatability ±0.3% F.S. ±1 digit
Switch ON Indicator Orange indicator 1: OUT1 & Orange indicator 2: OUT2
Analog output (Voltage Output); (within rated pressure range) (Vacuum, Compound); Output Voltage: 1 ~ 5V ±2.5%F.S.; Linearity: ±1% F.S.; Output impedance: about 1kΩ
Analog output (Voltage Output); (within rated pressure range) (Positive); Output Voltage: 0.6 ~ 5V ±2.5%F.S.; Linearity: ±1% F.S.; Output impedance: about 1kΩ
Enclosure classification IP40
Ambient temp. range Operation: 0 ~ 50℃, Storage:－10 ~ 60 ℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 1000V AC in 1-min (between case and lead wire)
Insulation resistance 50MΩ (at 500V DC, between case and lead wire)
Vibration Total amplitude 1.5mm or 10G,10Hz-150Hz-10Hz scan for 1 minute, 2 hours each direction of X, Y and Z
Shock 100m/s² (10G), 3 times each in direction of X, Y and Z
Tmperature charateristic ±2% F.S. of detected pressure 25°C at temp. Range of 0~50°C
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 4 cores
Weight Approx. 67g (with 2 meter lead wire)
Remark ※1.Hysteresis value is adjustable within 1~8 digits for one point set and window comparator mode.
Series Mindman MP47
