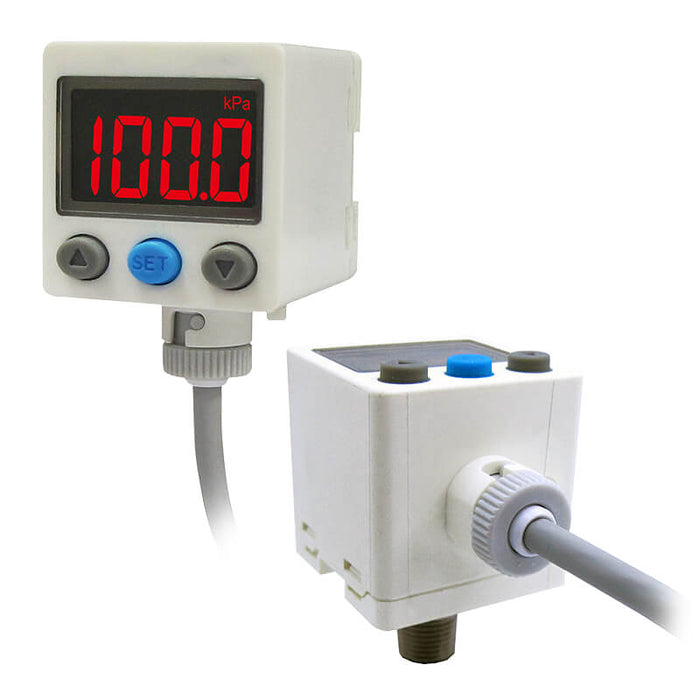

Mindman MP45 series

Mindman MP45C-010-F1 Pressure Switch - Compound, 2 NPN output+ 1 analog output (1~5V)

SKU MP45C-010-F1
by Mindman
$120.78 - $120.78
$120.78
$120.78 - $120.78
$120.78
Availability:
In stock

MP45 series (Pressure Switch).

Compound, 2 NPN output+ 1 analog output (1~5V)

Specifications

Port size F1:R1/8, M5; F2:NPT1/8,#10~32UNF; F3:G1/8, M5
Rated pressure range 0 ~ 1.000 MPa (Positive); －101.3 ~ 0.0 kPa (vacuum); －100.0~100.0 kPa (Compound)
Operating / Setting pressure range －0.100 ~ 1.000 MPa(Positive); －101.3 ~ 10.0 kPa (vacuum); －101.0~101.0 kPa (Compound)
Medium Air, Non-corrosive / Non-flammable gas
Power supply voltage 12 to 24V DC ±10%, Ripple (P-P) 10% or less
Response time ≦ 2.5ms (chattering-proof function: 25ms, 100ms,250ms,500ms,1000ms and 1500ms selections)
Switch output NPN: open collector 2 outputs, Max. load current: 125mA, Max. supply voltage: 30V DC, Residual voltage:≦1.5V; PNP: open collector 2 outputs, Max. load current: 125mA, Max. supply voltage: 24V DC, Residual voltage:≦1.5V
Repeatability (Switch output) ± 0.2% F.S. ±1 digit
Hysteresis Hysteresis mode/Window comparator mode: Adjustable (※1)
Current consumption ≦ 40mA (With no load)
Output short circuit protection Yes
7 segment LCD display 3½ digital, 7 segment LCD display (Red / Green / Orange) (Sampling rate: 5 times/sec.)
Analog output (Voltage Output) ※2 Output Voltage: 1 to 5V 2.5%; Linearity: 1% F.S.; Output impedance: about 1k Ω
Analog output (Current Output) ※3 Output Current: 4 to 20mA 2 5%; Linearity: 1% F.S.; Max. Load Impedance:250 Ω at power supply of 12V, 600 Ω at power supply of 24V; Min. Load impedance:50 Ω
Ambient temp. range Operation: 0 ~ 50 ℃,storage: － 10 ~ 60 ℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 1000V AC in 1-min. (between case and lead wire)
Insulation resistance 50MΩ (at 500V DC, between case and lead wire)
Vibration Total amplitude 1.5mm or 10G,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock 100m/s² (10G),3 times each in direction of X,Y and Z
Temperature characteristic ±2.5% F.S. of detected pressure (25℃) at temp. Range of 0~50℃
Lead wire Oil-resistance cable(0.15mm²)
Weight Port F1~F3 approx. 86g; Port F1C~F3C approx. 114g (with 2 meter lead wire)
Remark ※1.Hysteresis value is adjustable within 1~8 digits for one point set mode and window comparator mode.; ※2.If analog voltage output is selected, the analog current output cannot be selected at the same time.; ※3.If analog current output is selected, the analog voltage output cannot be selected at the same time.
Series Mindman MP45
