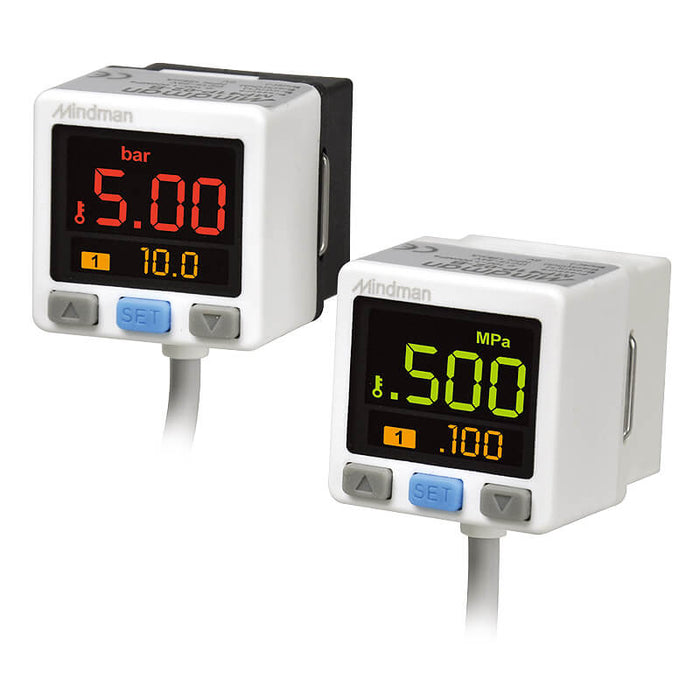

MP41 series (Pressure Switch).

Compound, 2 NPN output + 2M cable

Specifications

Rated pressure range －100.0 ~ 100.0 kPa, 0.0 ~ 1.0 MPa
Operating / Setting pressure range －101.0 ~ 101.0 kPa, -0.1 ~ 1.0 MPa
Medium Air, Non-corrosive gases, incombustible gases
Withstand pressure 300 KPa, 1.5 MPa
Power supply voltage 12 to 24V DC ±10%, Ripple (P-P) 10%
Response time Chattering-proof function: 0.05s, 0.25s, 0.5s, 1s,2s and 3s selections
Switch output NPN open collector, PNP open collector
Current consumption ≦40mA (With no load)
Output short circuit protection Yes
Enclosure IP40
Ambient temp. range Operation: 0 ~ 50℃, storage:－10 ~ 60℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 1000V AC in 1-min. (between case and lead wire)
Vibration Total amplitude 1.5mm or 10G,10Hz-150Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock 100m/s² (10G),3 times each in direction of X,Y and Z
Temperature characteristic ±2% F.S. of detected pressure (25°C) at temp. Range of 0~50°C
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15mm²) - 4 cores
Weight Approx 65 g (with 2-meter lead wire), Approx 30g (with male connector)
Series Mindman MP41
