Mindman MP400 series

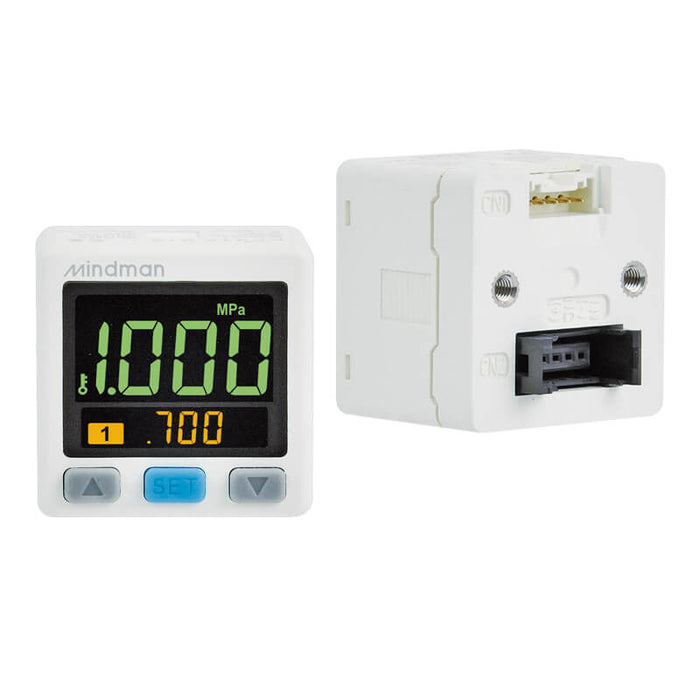

Mindman MP410-030 Pressure Sensor - Voltage input, 2 PNP output + 1 Analog output (1~5V)

SKU MP410-030
by Mindman
$141.09 - $141.09
$141.09
$141.09 - $141.09
$141.09
Availability:
In stock

MP400 series (Multi-controller).

Voltage input, 2 PNP output + 1 Analog output (1~5V)

Specifications

Power supply voltage 12 ~ 24V DC ± 10 %, Ripple (P-P) ≤ 10 %
Current consumption ≤ 40 mA (with no load)
Sensor input 1 ~ 5V or 4 ~ 20 mA
Repeatability ± 0.1 % F.S. ± 1 digit
Output short circuit protection Yes
Indicator accuracy ± 1 % F.S. ± 1 digit (Ambient temperature: 25 ± 3 °C)
Switch on indicator Orange Indicator 1: OUT1 & Orange Indicator 2: OUT2
Temperature characteristic ± 0.5 % F.S. of detected pressure (25 °C) at temp. (Range of 0 ~ 50 °C)
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores
Weight (with 2 meter lead wire) Approx. 67 g
Series Mindman MP400
