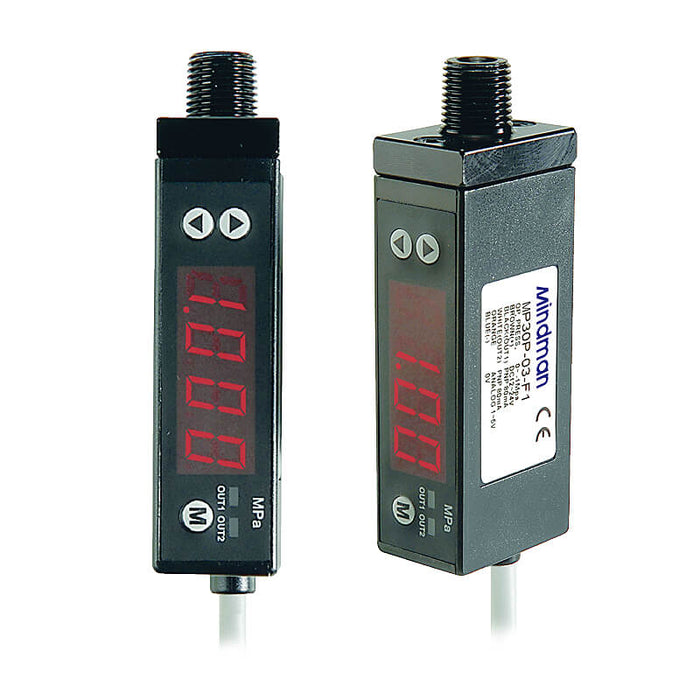

Mindman MP30V-01-F1 Pressure Switch - Vacuum, 2NPN output + analog output

SKU MP30V-01-F1
by Mindman
$141.67 - $141.67
$141.67
$141.67 - $141.67
$141.67
Availability:
In stock

MP30 series (Pressure Switch).

Vacuum, 2NPN output + analog output

Specifications

Port size F1: R1/8,M5; F2: NPT1/8,M5; F3: G1/8,M5
Rated pressure range Compound: －100.0 ~ 100.0 kPa; Vacuum:－101.3 ~ 0.0 kPa; Positive: 0.00 ~ 1.00 MPa
Operating / Setting pressure range Compound: －100.0 ~ 100.0 kPa; Vacuum:－101.3 ~ 10.0 kPa; Positive: －0.10 ~ 1.00 MPa
Medium Air, Non-corrosive gases,incombustible gases
Proof pressure 300 kPa (Compound, vacuum); 1.5 MPa (Positive)
Power supply voltage 12 to 24VDC ±10%, Ripple (P-P) 10% or less
Response time ≦2.5ms (chattering-proof function: 24ms, 192ms and 768ms selections)
Switch output NPN or PNP open collector 2 outputs; Max. load current: 100mA; Max. supply voltage: 30VDC; Residual voltage: ≦1V (load current 80mA)
Repeatability (Switch output) ≦± 0.2% F.S. ± 1 digit
Current consumption ≦55mA
Output short circuit protection Yes
7 segment LCD display 3½ digit, 7 segment LED display (Red) (Sampling rate: 5 times/sec.)
Indicator Green indicator: OUT1 & Red indicator: OUT2
Ambient temp. range Operation: 0 ~ 50℃,storage:-20 ~ 60℃ (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 1000VAC in 1-min (between case and lead wire)
Insulation resistance 50MΩ min. (at 500VDC, between case and lead wire)
Vibration Total amplitude 1.5mm,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock 980m/s² (100G),3 times each in direction of X,Y and Z
Temperature characteristic ≦2% F.S. of detected pressure (25℃) at temp. Range of 0~50℃
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm²) - 5 cores (01 / 03), - 4 cores (02 / 04)
Weight Appro 65g (with 2-meter lead wire),Appro 35g (with meter connector)
Series Mindman MP30
