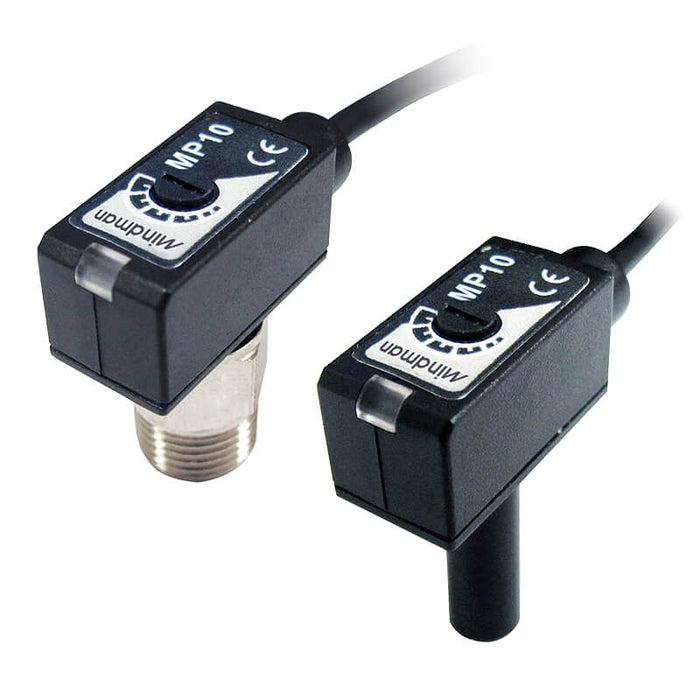

MP10 series (Pressure Switch).

G 1/8, M5

Specifications

Dimensions 26×10×10.4 mm
Operating / Setting pressure range Vacuum: 0 ~ －101.3 kPa, Positive: 0 ~ 0.6 MPa
Medium Air, Non-corrosive / Non-flammable gas
Proof pressure Vacuum: 0.6 MPa, Positive: 1.5 MPa
Response time Approx. 1ms
Current consumption 10mA max.
Sensor type NPN or PNP
Output short circuit protection Yes
Setting method Adjusting by VR
Indicator Red LED turns ON
Enclosure IP 40
Ambient temp. range Operation: 0 ~ 60℃, storage:－20 ~70℃ (No condensation or freezing)
Ambient humidity range Operation / Storage: 35~85% RH (No condensation)
Vibration Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X, Y and Y
Shock 980m/s2 (100G),3 times each in direction of X,Y and Z
Piping method Push-in tube or thread-in
Lead wire Oil-resistance cable, 3 wires(0.18mm²), φ2.6mm
Weight Approx. 50 g (with 3-meter lead wire)
Series Mindman MP10
