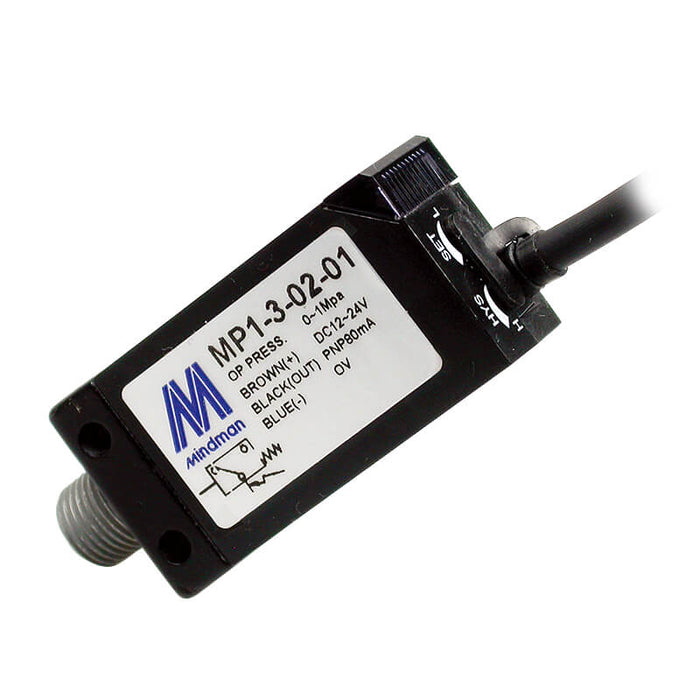

MP1 series (Pressure Switch).

Vacuum, NPN 2 output, 1m

Specifications

Port size R1/8”,M5; NPT1/8”,M5; G1/8”,M5.
Operating pressure range Vacuum: -101 to 0 kPa; Low pressure: 0 to 100 kPa; Positive: 0 to 1 Mpa
Medium Air, Non-corrosive/Non-flammable gas
Proof pressure 500 kPa (Vacuum, Low pressure); 1.5 MPa (Positive)
Power supply voltage 12 to 24VDC ±10%, Ripple (P-P) 10% or less
Response time 5ms or less
Repeatability ±1% F.S.
Current consumption 1output：NPN & PNP：21mA MAX., 2 output：25mA MAX.
Enclosure IP40
Ambient temp. range Operation: 0 ~ 50°c,storage:-20 ~ 60°c (No condensation or freezing)
Ambient humidity range Operation/Storage: 35 ~ 85% RH (No condensation)
Withstand voltage 1000VAC in 1-min (between case and lead wire)
Insulation resistance 50MΩ min. (at 500VDC M, between case and lead wire)
Vibration Total amplitude 1.5mm,10Hz-55Hz-10Hz scan for 1 minute, two hours each direction of X,Y and Z
Shock 980m/s2 (100G),3 times each in direction of X,Y and Z
Temperature characteristic ±3% F.S. (Standard：25 °c)
Weight 50g (each including 1M lead wires)
Series Mindman MP1
