Mindman MHPSC series

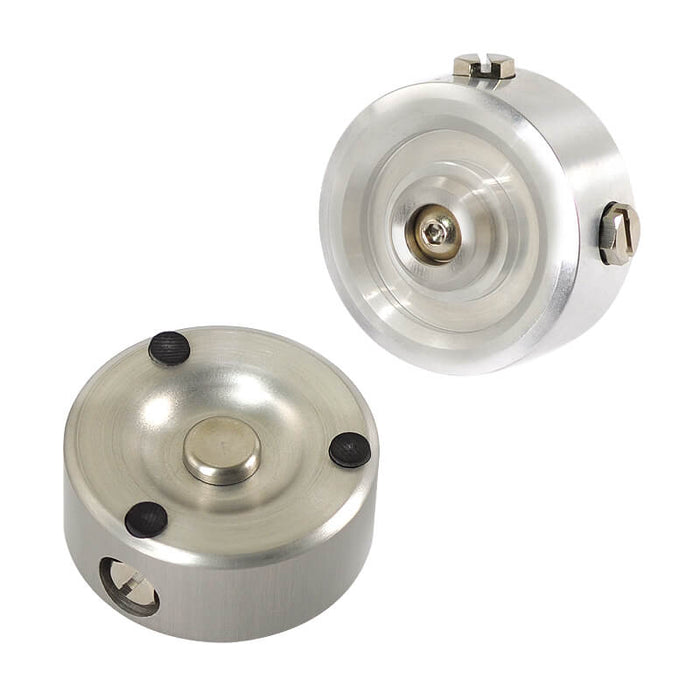

Mindman MHPSC No-Contact Transfer Unit

SKU MHPSC-20-CI
by Mindman
$498.54 - $962.64
$498.54
$498.54 - $962.64
$498.54
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MHPSC no-contact transfer units.

Select the options below; the full Mindman ordering code is shown as the SKU (see SKU).

Price is the Mindman list price.

Specifications

Port size 20, 30, 40, 60
Size M3, M5
Medium Dry air filter 40 u
Operating pressure range 0.2~0.7 MPa
Consumption in air (※) 100~210 1/min
Lifting force (※) 0.9~6 N
Ambient temperature ＋5~＋60 ℃
Level of noise 25dB
Material Aluminum A5056 and stainless steel
Weight 10~124 g
Remark (※): Indicative value for sizes 20 and 30: Pressure of 0,5 MPa with an air supply by tube φ2,5x4 length:1m. for sizes 40 and 60: Pressure of 0,5 MPa with an air supply by tubeφ4x6 length:1m.
Series Mindman MHPSC
