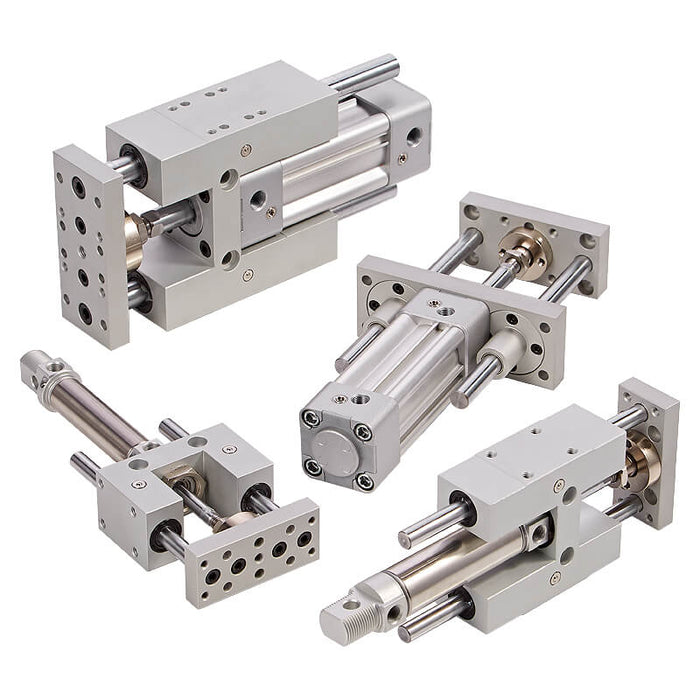

Mindman MGT series

Mindman MGTU-20 Twin-Guide Cylinder, Heavy Duty (Linear Bearing), ø20 mm Bore

SKU MGTU-20-(1-25)
by Mindman
$376.64 - $592.57
$376.64
$376.64 - $592.57
$376.64
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MGTU series twin-guide cylinder, heavy duty (linear bearing), ø20 mm bore.

Stroke: available from 1 to 500 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MGTU-20-[stroke][-RP]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Model MGTK, MGTX, MGTB, MGTU
Tube I.D. (mm) 20, 25, 32, 40, 50, 63
Port size G1/8, G1/4, G3/8
Medium Air
Operating pressure range 0.2~0.7 MPa
Ambient temperature －5℃~＋60℃ (No freezing)
Available speed range 50~750, 50~500 mm/sec
Lubrication Cylinder: Not required, Guide (*1): Lubricating grease
Sensor switch φ20, φ25: RDC, RQC, RDT, RQT, RCM, φ32~φ63: RDT, RQT, RCI
Sensor switch holder φ20,φ25: R*C: BKC-1 (*2); R*T: BKT-1; RCM: BM20, BM25 (Band)
Remark *1.Periodically refill with the Lubricating grease is required to enhance the lubricative grade and lifetime.; Inject an appropriate amount of lubricating grease and the cylinder moves back and forth several times to confirm that the movement is smooth.; *2. Not for R*CV angle cable.
Series Mindman MGT
