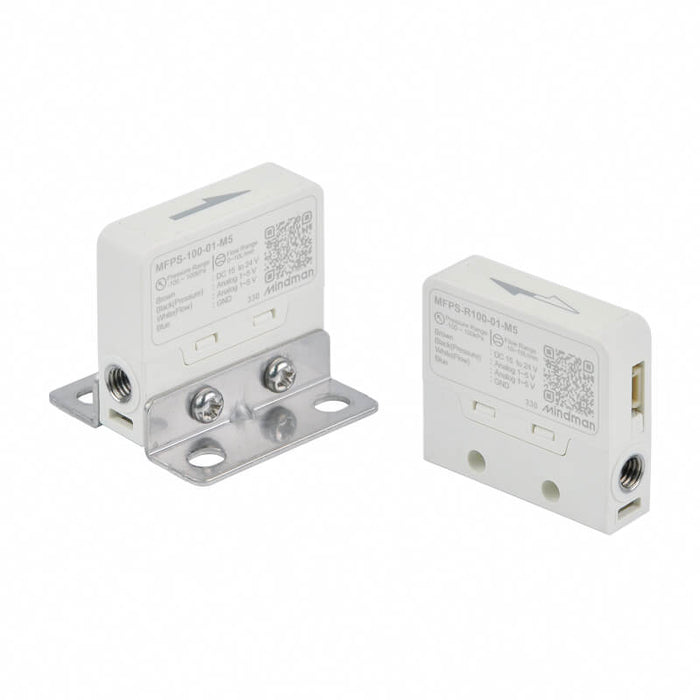

MFPS series.

Specifications

Flow Measured flow rate range: 0 ~ 0.3 ~ -10 ~ 10 L/min; Flow direction: Unidirection, Bidirectional
Pressure-Rated pressure range -100 ~ 100 kPa
Withstand pressure 300 kPa
Fluid Dry air, N 2, Non-corrosive / Non-flammable gas
Power supply voltage 15 ~ 24V DC ±10%, Ripple (P-P) ≤ 10%
Current consumption ≤ 30mA
Flow Repeatability: ≤ ± 2% F.S.; Linearity: Non-linearity (※1); Temp. characteristic: ≤ ± 0.6% F.S./°C, ≤ ± 0.3% F.S./°C (※2); Pressure characteristic: ± 10% F.S., ± 5% F.S. (※3)
Pressure Repeatability: ≤ ± 1% F.S.; Linearity: ± 0.5% F.S.; Temp. characteristic: ± 2% F.S (※2)
Response time ≤ 5ms (90% Response time); Pressure: ≤ 1ms
Switch on indicator Green/ orange/ red
Analog Output Flow: Voltage Output Range: 1~5V ±5% F.S. (±0.2V) (Non-linearity), Output Impedance: 1 KΩ; Pressure: Voltage Output Range: 1~5V ±1% F.S. (±0.04V) (Linearity), Output Impedance: 1 KΩ
Environment Enclosure: IP40; Working fluid temp: 0 ~ 50°C (No condensation or freezing); Ambient temp. range: 0 ~ 50°C; Storage: -10 ~ 60°C (No condensation or freezing); Ambient humidity Range: Operation / Storage: 35 ~ 85% R.H. (No condensation); Withstand voltage: 1000V AC in 1-min (between case and lead wire); Insulation resistance: ≥ 50MΩ (500V DC, between case and lead wire); Vibration: Total amplitude 1.5mm or 10G, 10 Hz - 55 Hz - 10 Hz scan for 1 minute, 2 hours each direction of X, Y and Z; Vibration: 100m/s² (10G), 3 times each in direction of X, Y and Z
Lead Wire ø2.9 PUR - 28 AWG (0.078 mm²) - 4 cores
Weight (with 3 meter lead wire) Approx. 43 g (w/o Port); Approx. 47 g (M5 Port)
Remark ※1. Approximate linearity analog output (±10% F.S.) except 0 ~ 10 L and 10 ~ 10 L.; ※2. Benchmark: 25°C (Temperature range: 0 ~ 50°C); ※3. Benchmark: 0 kPa (Pressure range: -90 ~ 200kPa)
Series Mindman MFPS
