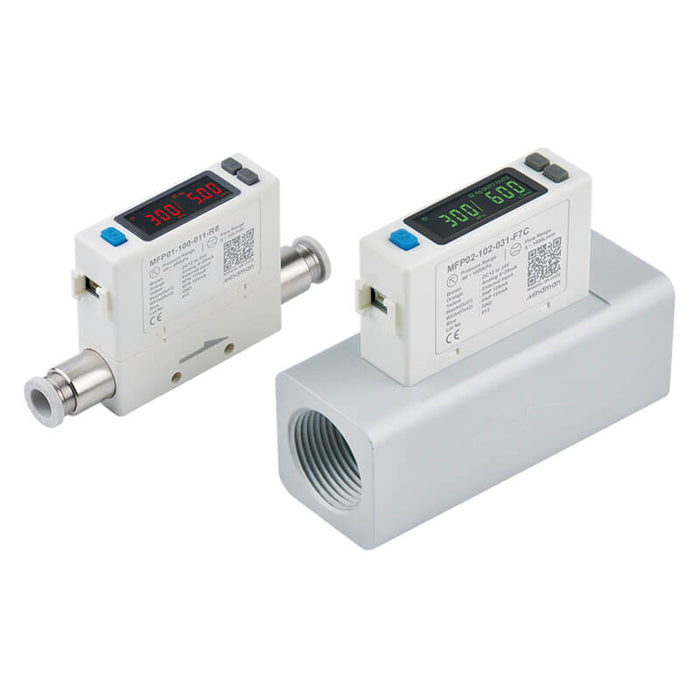

MF01/ MFP01 series.

Specifications

Fluid Dry air, N2, Non-corrosive / Non-flammable gas
Flow; Pressure; (Sensor element) Measured flow rate range: 005: 0 ~ 500 mL/min, 010: 0 ~ 1000 mL/min, 050: 0 ~ 5 L/min, 100: 0 ~ 10 L/min, 500: 0 ~ 50 L/min, 101: 0 ~ 100 L/min, 201: 0 ~ 200 L/min; Flow direction: Unidirection; Rated pressure range: -90 ~ 800 kPa
Pressure Display Display range: -100 ~ 1000 kPa
Flow; Pressure; (Accuracy) Guaranteed range: 2 ~ 100 % F.S.; Guaranteed range: 0 ~ 100 % F.S.
Response time; (Switch output) Flow: 800 ms (50 ms, 80 ms, 120 ms, 200 ms, 400 ms, 1500 ms selectable); Pressure: 2.5 ms (25 ms, 100 ms, 250 ms, 500 ms, 1000 ms, 1500 ms selectable)
External input Non-voltage input, < 0.4 V, ≥ 30 ms
Communication interface RS-485
Power Power supply voltage: 12 ~ 24 V DC ± 10 %, Ripple (P-P) ≤ 10 %; Current consumption: ≤ 50 mA
Lead wire ø4 Oil-resistance cable (PVC) - 26 AWG (0.15 mm2) - 6 cores
Weight (with 2 meter lead wire) Approx. 107 g (ø6 port); Approx. 110.5 g (ø8 port)
Series Mindman MFP01
