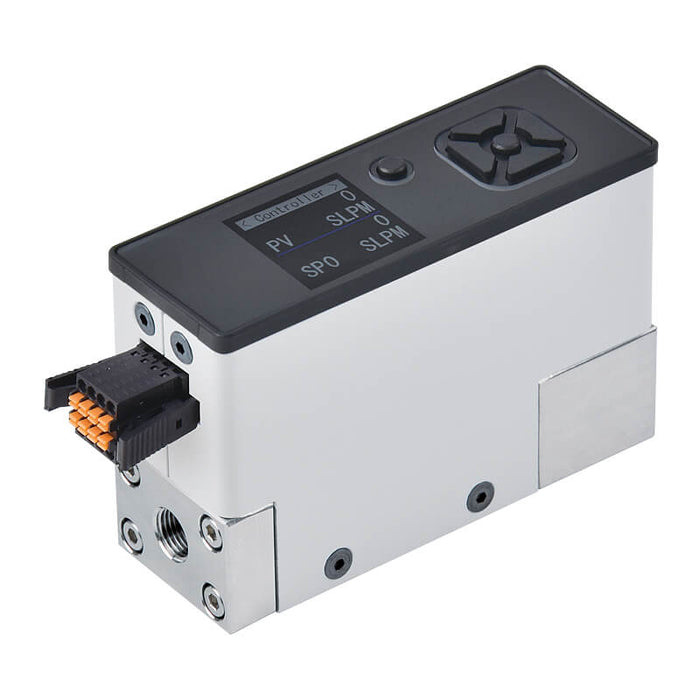

MFCB series.

Specifications

Valve type Proportional solenoid valve normally closed when power off (N.C.)
Fluid Non-corrosive / Non-flammable gas: Dry air, N2, CO2, Ar
Flow rate 200 L/min
Display 1.3" 65K Full color TFT-LCD display
Display - Flow control Display range: 0 ~ 100 % F.S.; Minimum Setting scale: LPM: 1 L/min, CFM: 1 ft³ /min (※1)
Display - Pressure Display range: -101 ~ 700 kPa; Minimum Setting scale: kPa: 1, MPa: 0.001, kgf/cm²: 0.01, bar: 0.01, psi: 0.1
Display - Temperature Display range: 0 ~ 50°C / 32 ~ 122 °F (Non-freezing); Minimum Setting scale: 0.1°C, 0.1°F
Display - Humidity Display range: 10~90% RH; Minimum setting scale: 0.1% RH
Accuracy - Flow control (*2) Control accuracy: ±3% F.S.; Repeatability: ±1% F.S. ± 1 digit; Temp. characteristic: ±5% F.S. (*3); Pressure characteristic: ±2% F.S. (*4)
Accuracy - Pressure Indicator accuracy: ±2% F.S.; Repeatability: ±0.1% F.S.
Accuracy - Temperature Indicator accuracy: ±0.2 °C
Accuracy - Humidity Repeatability: ±5.5% RH
Accuracy - Analog input and output ±1% F.S.
Switch output NPN open collector output: Max. load current: 200 mA, Max. supply voltage: 24 V DC, Voltage drop: ≤ 1.5 V; PNP open collector output: Max. load current: 200 mA, Max. supply voltage: 24 V DC, Voltage drop: ≤ 1.5 V
Switch output - Output mode Flow control: Tolerance mode, error mode
Switch output - Response time Flow control: 0.3 s (typ.) to the setting ± 2 % F.S.
Analog input and output (*5) DC 1 ~ 5 V, 0 ~ 10 V, 4 ~ 20 mA
Communication interface RS485 Modbus RTU
Power Power supply voltage: DC 24 V ± 10 %; Current consumption: ≤ 300 mA
Environment Standard operating differential pressure: 350 kPa (Inlet pressure: 350 kPa, Outlet pressure: 0 kPa); Operating differential pressure range (*6): 350 ~ 500 kPa; Maximum operating pressure (*7): 700 kPa; Enclosure: IP40; Working fluid temp: 5 ~ 50 °C (No condensation or freezing); Ambient temp. range: Operation: 5 ~ 50 °C; Storage: -10 ~ 60 °C (No condensation or freezing); Ambient humidity range: Operation / Storage: 35 ~ 85 % R.H. (No condensation)
Accessories 2M cable
Weight 685 g
Remark *1. In CFM (ft3/min), actual value equals displayed value × 0.01.; *2. Based on dry compressed air and measured by our standard flow meter as a reference for other gas.; *3. Benchmark: 25 °C (Temperature range: 0 ~ 50 °C); *4. Benchmark: Inlet pressure: 350 kPa, Outlet pressure: 1 atmospheric pressure, 25 °C; *5. Switchable, please follow the manual for setup.; *6. The minimum operating differential pressure is the pressure differential required to achieve full scale flow with the secondary side released to atmosphere.; *7. The maximum operating pressure is the maximum primary side pressure.
Series Mindman MFCB
