Mindman METS2 series

Mindman METS2-14 Electric Slider (without motor)

SKU METS2-14-L05-100-M-(M40/P20/P40)
by Mindman
$1,284.31 - $2,509.36
$1,284.31
$1,284.31 - $2,509.36
$1,284.31
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

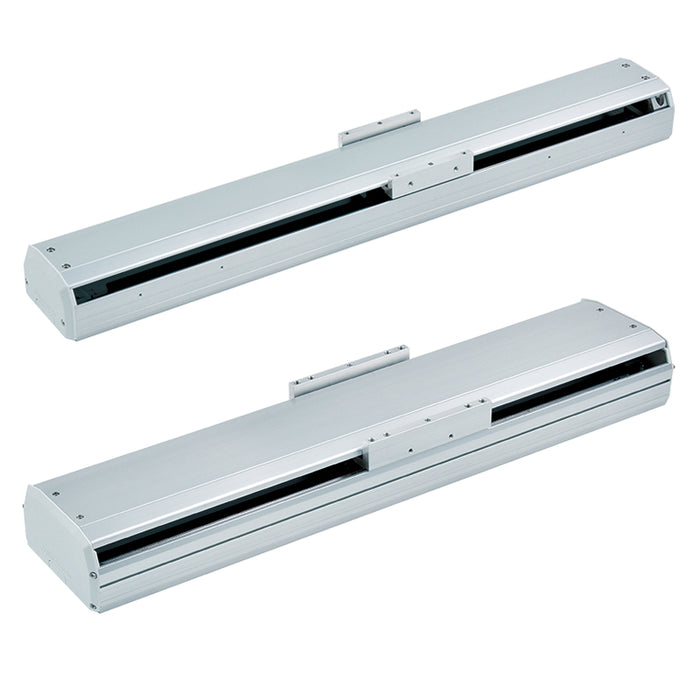

Mindman METS2 series ball-screw electric slider, size 14, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (METS2-14-[lead]-[stroke]-[motor position]-[flange]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Listed without brake.

Accessories: RZ-ET1 sensor set · AK-ET1 accessory kit

Price is the Mindman list price.

Specifications

Position repeatability (mm) ±0.01
Lead (mm) 5~20
Max. speed (mm/s) 250~1000
Stroke (mm) 10: 100~1000 / 50 pitch; 14: 100~1000 / 50 pitch; 17: 100~1200 / 50 pitch
Ball screw O.D. 10: C7 ø16; 14: C7 ø16; 17: C7 ø20
Home sensor EE-SX672 (NPN)
AC servo motor 10: 50W, 100W; 14: 200W; 17: 200W, 400W
Coupling (mm) 10: 10×8; 14: 10×14 / 10×11; 17: 10×14
Max. payload (kg) 10: Horizontal: 18~50, Vertical: 3~12; 14: Horizontal: 35~95, Vertical: 6~27; 17: Horizontal: 75~120, Vertical: 14~40
Rated thrust (N) 10: 42~170, 85~341; 14: 174~683; 17: 173~694, 347~1388
AC servo motor 10: 200W, 400W; 14: 400W; 17: 750W
Coupling (mm) 10: 10×14 / 11; 17: 10×19
Max. payload (kg) 10: Horizontal: 18~50, Vertical: 3~12; 14: Horizontal: 40~110, Vertical: 8~33; 17: Horizontal: 83~120, Vertical: 25~50
Rated thrust (N) 10: 174~683, 348~1366; 14: 347~1388; 17: 640~2563
Sensor switch RLT
Series Mindman METS2
