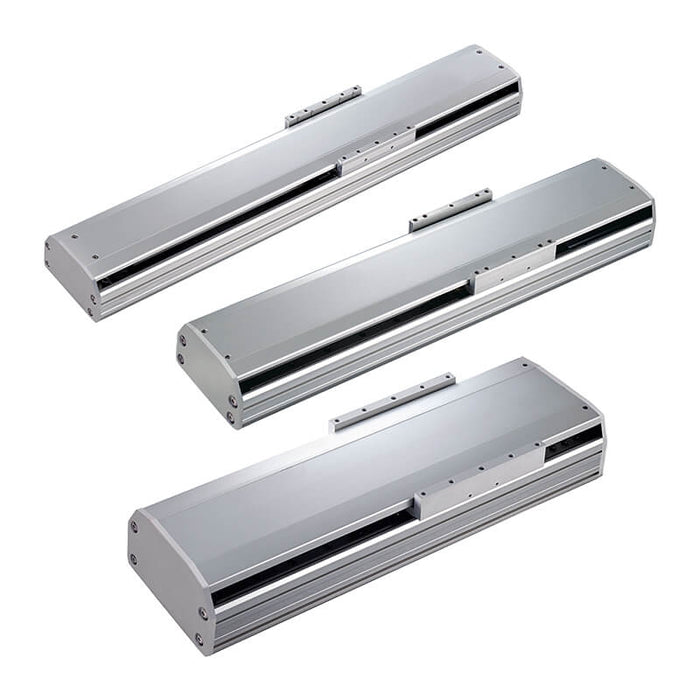

Mindman METS series

Mindman METS-22 Electric Slider, 750W (without motor)

SKU METS-22-(L05/L10/L25)-100-(M/BC)-(M75/P75)-E5
by Mindman
$4,456.49 - $9,260.66
$4,456.49
$4,456.49 - $9,260.66
$4,456.49
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman METS series ball-screw electric slider, size 22, for 750W servo motors, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (METS-22-[lead]-[stroke]-[motor position]-[flange]-E5).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Listed without brake and without sensors (E5). Brake, coupling and sensor versions: contact us.

Price is the Mindman list price.

Specifications

Size 22
Repeatability ±0.01 mm
Ball screw lead 5, 10, 25, 40 mm
Max. speed 250~2000 mm
Servo motor 750W
Max. payload Horizontal: 60~150 kg, Vertical: 10~55 kg
Rated thrust 320~2563 N
Stroke 100~1500 mm / 50 mm pitch
Ball screw C7ø20, ø25 mm
High rigidity linear guide W23×H18 mm
Coupling 17×19, 12×19 mm
Home sensor Outside: EE-SX672 (NPN); Built in: EE-SX674 (NPN)
Series Mindman METS
