Mindman METI series

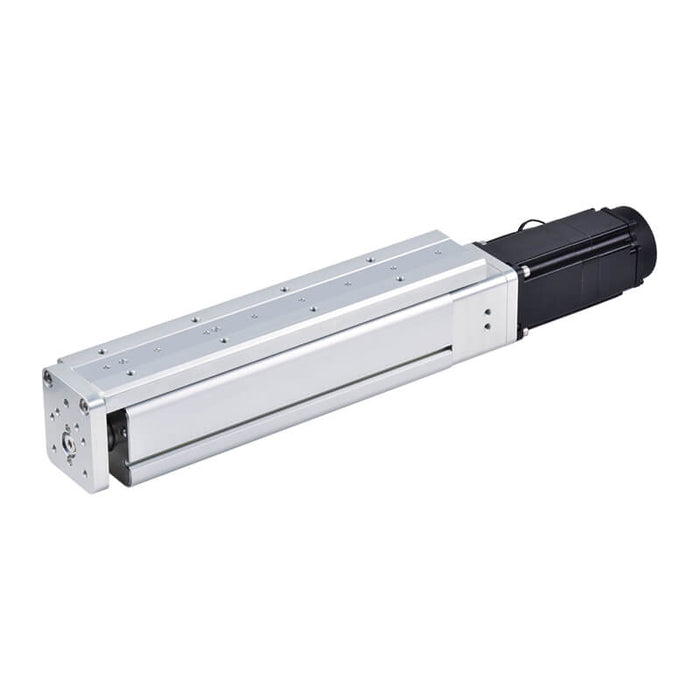

Mindman METI-32 Electric Slide Actuator (without motor)

SKU METI-32L01-50-BC-(M10/P10/S42/B42)
by Mindman
$644.81 - $757.64
$665.13
$644.81 - $757.64
$665.13
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman METI series electric slide actuator, size 32, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (METI-32[lead]-[stroke]-[motor position]-[flange]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Price is the Mindman list price.

Specifications

Size 32, 40, 50
Positioning repeatability ±0.02 mm
Lead 1, 2, 5, 10, 20 mm
Ball screw C7ø8, C7ø12, C7ø16
Stroke 50, 100, 150 mm
Anti-rotation tolerance ±0.4 °
Start torque (N.m) <0.05, <0.1, <0.2, <0.25, <0.3
Sensor switch RDC(V), RQC(V)
With AC servo motor (W) 50 (100), 200 (400)
Max. speed 50~1000 mm/s
Max. axial force (N) 35~720 (80~1600)
With step motor □42, □56
Max. speed 50~1000 mm/s
Max. thrust force at top speed 16~325 N
Note *1. Special accuracy and lead is available.; *2. Due to the characteristics of a step motor, thrust force is low at high speed. Lowering the operating speed can further increase the thrust force.
Series Mindman METI
