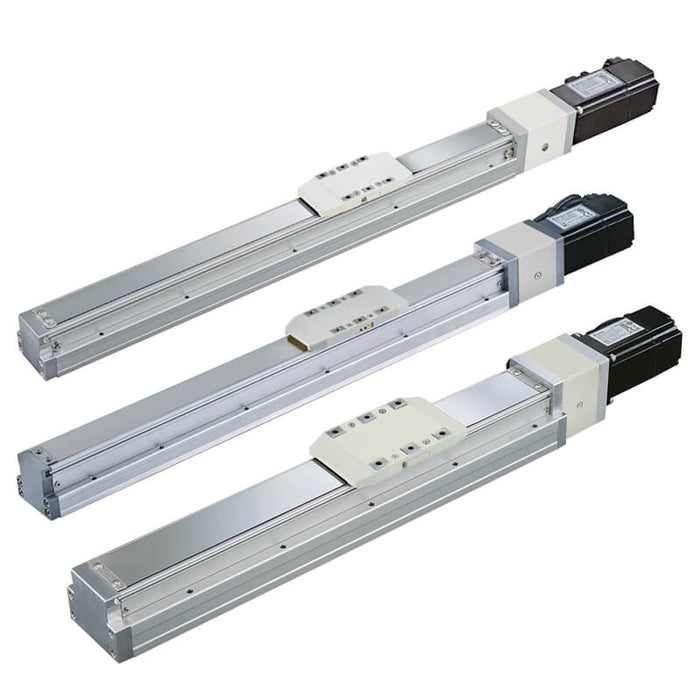

Mindman METG series

Mindman METG-5 Electric Slider (without motor), Lead L02, L05, L10

SKU METG-5-(L02/L05/L10)-50-BC-(M10/P10)-E5
by Mindman
$1,286.35 - $2,211.66
$1,286.35
$1,286.35 - $2,211.66
$1,286.35
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman METG series ball-screw electric slider, size 5, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (METG-5-[lead]-[stroke]-[motor position]-[flange]-[home][limit sensor]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

With 50 mm stroke the home sensor and limit sensor must be on different sides of the body.

Price is the Mindman list price.

Specifications

Size Small size: 4, 5, 8
Repeatability (mm) ±0.005
Ball screw lead (mm) 4: 2, 6, 12; 5: 2, 5, 10, 20; 8: 5, 10, 20
Max. speed (mm/s) 4: 100, 300, 600; 5: 100, 250, 500, 1000; 8: 250, 500, 1000
AC servo motor 4: 50W, 100W; 5: 100W; 8: 200W, 400W
Max. payload (kg) Horizontal- 4: 25, 20, 12, 5: 30, 15, 10, 8: 50, 30, 18; Vertical- 4: 8, 5, 2, 5: 10, 5, 2.5, 8: 15, 8, 3
Rated thrust (N) 4: 424, 414, 71; 5: 854, 341, 170, 85; 8: 683, 341, 174
Stroke (mm) 4: 50~800 / 50 pitch; 5: 50~800 / 50 pitch; 8: 50~1100 / 50 pitch
Ball screw ø (mm) 4: C7ø8; 5: C7ø12; 8: C7ø16
Coupling (mm) 4: 7×8, 5: 7×8; 8: 10×14/11
Home sensor (Outside) EE-SX674 (NPN)
Remark * When the stroke is over 300mm, the run-out of the ballscrew will occur.; We recommend to low down the working speed under this circumstances.; * Acceleration and deacceleration value is set 0.2 second.
Series Mindman METG
