Mindman METB series

Mindman METB-42 Belt-Driven Electric Slider (without motor)

SKU METB-42-0200-(F08/M12/D12)(L/R)
by Mindman
$1,370.60 - $5,545.13
$1,370.60
$1,370.60 - $5,545.13
$1,370.60
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

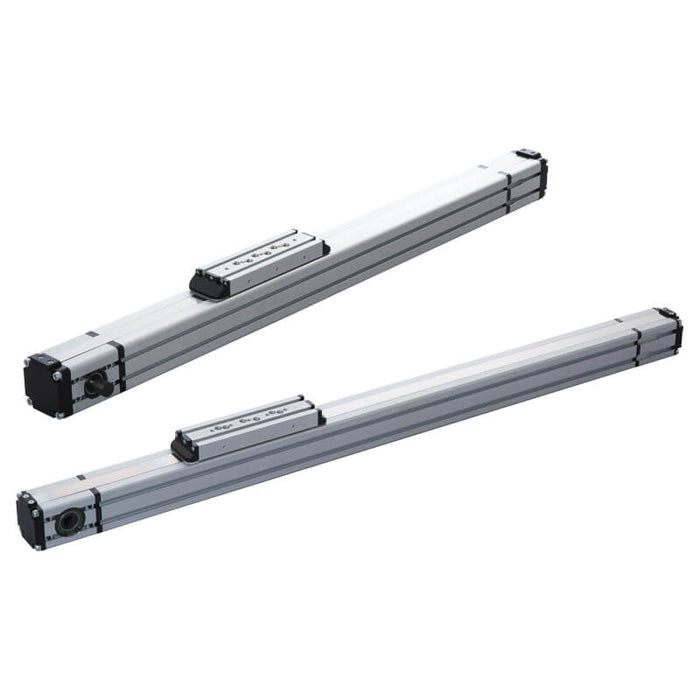

Mindman METB series belt-driven electric slider, size 42 (42×42 mm), supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (METB-42-[stroke]-[shaft version][L/R]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Price is the Mindman list price.

Specifications

Size 42, 55, 80 mm
Max. speed 3 m/s
Max. stroke length 6000 mm
Min. stroke length 100 mm
Pulley drive ratio 90, 120, 160 mm
Number of teeth of pulley 18, 24, 32 mm
Belt width (Teeth type ATL5) 12, 16, 25 mm
Max. rpm 2000, 1500, 1150 g/min
Base weigth 1.6, 4.8, 6 kg
Added weight per 100 mm stroke 0.25, 0.37, 0.9 kg
Max. rated load Fx: 460, 820, 1650 N; Fy: 1560, 1850, 4500 N; Fz: 1560, 1850, 4500 N
Moments Mx: 20, 25, 80 Nm; My: 55, 120, 450 Nm; Mz: 55, 120, 450 Nm
lnertia moment Aluminum profile lx: 11.8, 36, 183 cm⁴; ly: 14.2, 45, 226 cm⁴
Positioning repeatability ±0.05 mm
Max. radial load on input shaft 220, 300, 300 N
No load torque >0.1, >0.5, 0.9 Nm
Sensor switch RDT, RQT, RCI
Series Mindman METB
