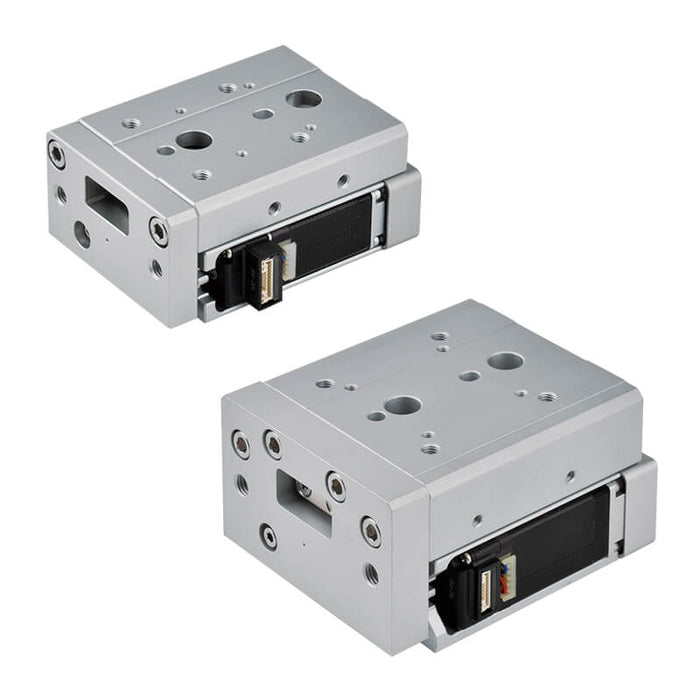

Mindman MESS2 series

Mindman MESS2-25L08 Mini Electric Slide Cylinder, Lead 8 mm

SKU MESS2-25L08-30-CK10(015/03/05)N(015/03)
by Mindman
$1,137.99 - $2,336.42
$2,160.69
$1,137.99 - $2,336.42
$2,160.69
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MESS2 series mini electric slide cylinder, size 25, 8 mm lead, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MESS2-25L08-[stroke]-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Accessories: RZ-ET1-10 sensor set · AK-ES1 accessory kit

Price is the Mindman list price.

Specifications

Size 16, 25
Position repeatability ±0.02 mm
Lead 16: 2 mm; 25: 2, 8 mm
Maximum speed *1 Motor SM/ BM: ≤50~≤400 mm/s; Motor OBM: ≤50~≤200 mm/s
Work load *2 Horizontal: 3 kg (16), 1.5, 6 kg (20); Vertical: 0.8 kg (16), 0.8, 1.8 kg (20)
Pushing force *1, 3, 4 18~195 N
Max. stroke length 16: 100 mm; 25: 100 mm
Encoder Incremental A/B/Z (4000PPR)
Motor size 16: 20 mm (SM、OBM、BM); 25: 25 mm (OBM、BM)、28 mm (SM)
Rated voltage DC 24V±10%
Sensor switch RLT
Remark *1. The speed and force may change depending on the cable length, load, stroke and mounting conditions.; *2. The maximum load capacity decreases as the speed increases.; *3. Mounting position of the rated load: for horizontal use – on the table; for vertical use – at the connecting plate.; *4. Calculation for static and dynamic loads and moments can be found in pages 3~4 of the MCSS catalog.; *5. The accuracy of pushing force is ± 20%.; *6. Pushing force for MESF2 is from 30% to 90%.
Series Mindman MESS2
