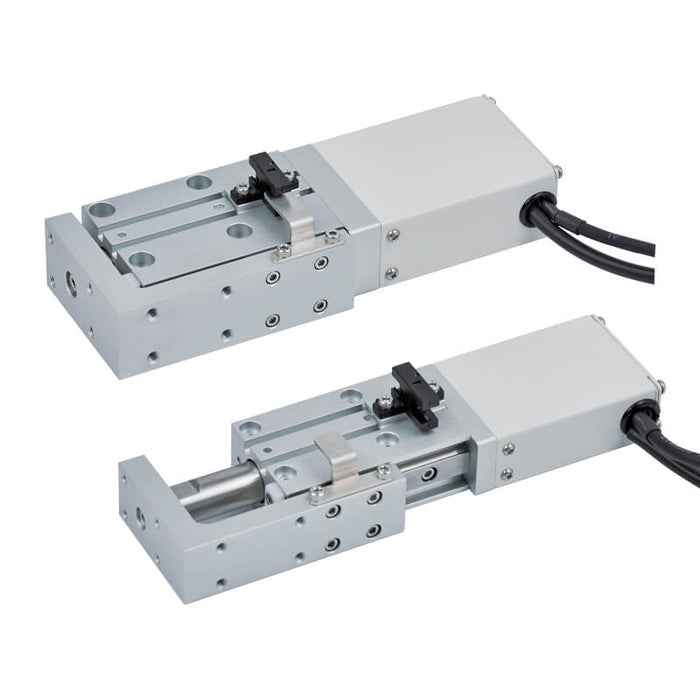

Mindman MESH2 series

Mindman MESH2-20L08 Mini Electric Slide Table, Lead 8 mm

SKU MESH2-20L08-30-CK10(015/03/05)N(015/03)
by Mindman
$1,043.22 - $2,094.19
$2,076.45
$1,043.22 - $2,094.19
$2,076.45
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MESH2 series mini electric slide table, size 20, 8 mm lead, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MESH2-20L08-[stroke]-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Accessories: RZ-ES3 sensor set · AK-ES3 accessory kit

Price is the Mindman list price.

Specifications

Size 16, 20
Position repeatability ±0.02
Lead 16: 2 mm; 25: 2, 8 mm
Maximum speed *1 Motor SM/ BM: ≤50~≤400 mm/s; Motor OBM: ≤50~≤200 mm/s
Work load *2 Horizontal: 3 kg (16), 1.5, 6 kg (20); Vertical: 0.8 kg (16), 0.8, 1.8 kg (20)
Pushing force *1, 3, 4 18~195 N
Max. stroke length 16: 100 mm; 25: 100 mm
Encoder Incremental A/B/Z (4000PPR)
Motor size 16: 20 mm; 25: 28 mm
Rated voltage DC 24V±10%
Sensor switch RLT
Remark *1. The speed and force may change depending on the cable length, load, stroke and mounting conditions.; *2. The maximum load capacity decreases as the speed increases.; *3. The accuracy of pushing force is ± 20%.; *4. Pushing force for MESF2 is from 30% to 90%.
Series Mindman MESH2
