Mindman MESBE series

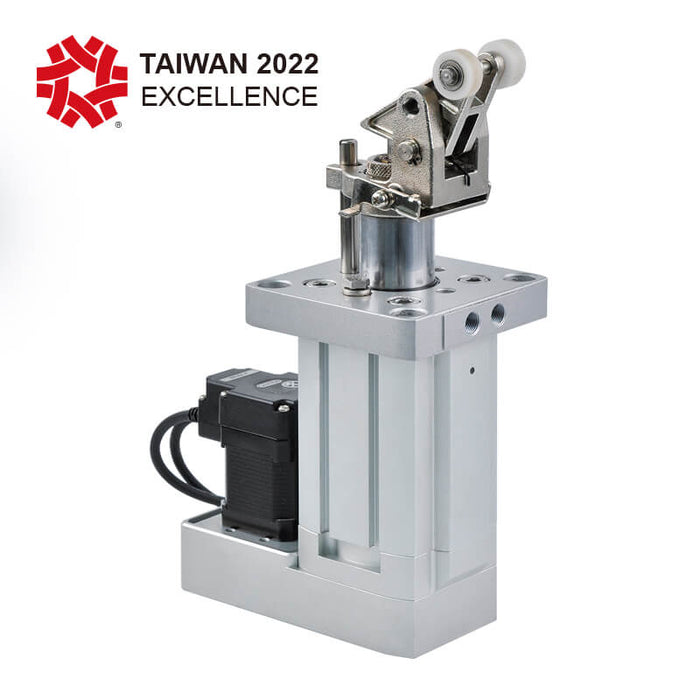

Mindman MESBE-63-30 Electric Stopper Actuator

SKU MESBE-63-30-CK10(015/03/05)N(015/03)
by Mindman
$2,389.94 - $2,691.30
$2,671.42
$2,389.94 - $2,691.30
$2,671.42
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MESBE series electric stopper actuator, size 63, 30 mm stroke, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MESBE-63-30-[L]-[S]-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Price is the Mindman list price.

Specifications

Motor type Step motor
Transmission Trapezoidal screw + belt
Size 32, 50, 63, 80
Stroke 20, 30, 40mm
Repeatability ±0.1 mm
Ball screw lead 1.5, 2 mm
Ascend / descend time 1s
Max. operating frequency (c.p.m) 5.5
Ambient temperature 0~+55°C (No freezing)
Ambient humidity (RH) 35~85% (No condensation)
Motor size □35, □42, □56, □60
Encoder Incremental encoder (4000PPR)
Rated voltage DC 24V±10%
Cushion Adjustable shock absorber
Sensor switch RDC(V), RQC(V)
Proximity sensor RJY
Weight 1.45, 2, 5.42, 8.85 kg
Series Mindman MESBE
