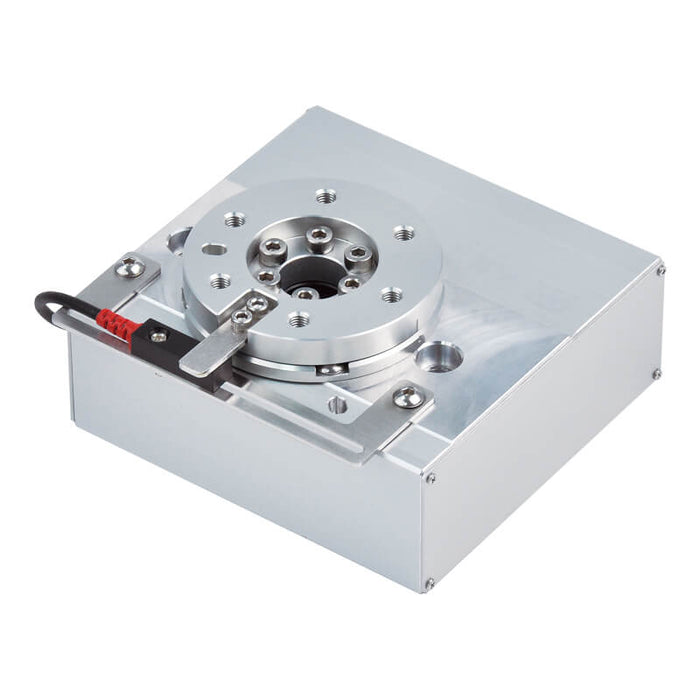

Mindman MERE series

Mindman MERE-10 Electric Rotary Actuator

SKU MERE-10-1-CK10(015/03/05)N(015/03)
by Mindman
$1,830.81 - $2,298.72
$2,298.72
$1,830.81 - $2,298.72
$2,298.72
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MERE series electric rotary actuator, size 10, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MERE-10-[angle]-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Accessories: RJF sensor switches · AK-ER1 accessory kit

Price is the Mindman list price.

Specifications

Size 10, 30, 50
Rotation angle 310, 360 °, 320, 360 °
Lead 12°
Max. rotating torque ※1,3,4 0.3~3.3 N·m
Max. moment of inertia 0.0018~0.05 kg·m²
Max. angular speed ※1,2 ≤420 °/s
Max. angular acceleration/deceleration 3000 °/s²
Backlash ± 0.5 °, ± 0.3 °
Positioning repeatability ± 0.05 °
Max. operating frequency 60 cpm
Motor size(mm) □20, □28, □42 mm
Rated voltage DC 24V±10%
Sensor switch RJF
Weight 0.47~3 kg
Remark ※1. The angular speed and rotating torque may change depending on the cable length, load, stroke and mounting conditions.; ※2. The max. angular speed is 30°/s with push motion function.; ※3. The torque accuracy is ±20%.; ※4. The range of rotating torque is 30% ~ 90%.
Series Mindman MERE
