Mindman MEQI series

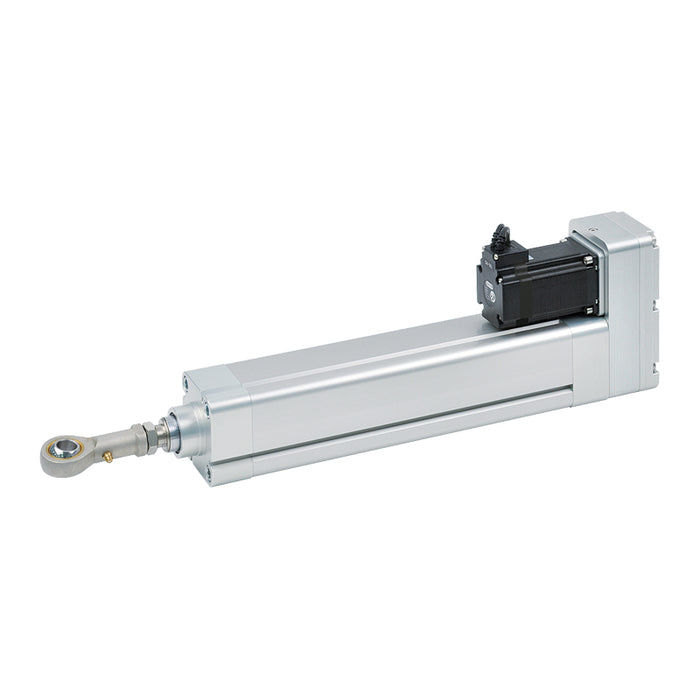

Mindman MEQI-63 ISO 15552 Electric Rod Actuator (without motor)

SKU MEQI-63(L05/L10/L20)-100-BC-(M40/P40/S56/B56)
by Mindman
$1,372.73 - $1,994.85
$1,372.73
$1,372.73 - $1,994.85
$1,372.73
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MEQI series ISO 15552 electric rod actuator, size 63, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (MEQI-63[lead]-[stroke]-[motor position]-[flange]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Mountings LB, CA, CB, CDB, FAC/FBC and connectors Y, I, YS, PIN are the same as the MCQV series.

Accessories: LC-EQ1 foot mounting · TFA / TFB-EQ1 trunnion mounting

Price is the Mindman list price.

Specifications

Size 32, 40, 50, 63, 80
Standard ISO 15552
Repeatability (mm) ±0.02
Ball screw lead (mm) 1, 2, 5, 10, 20, 32
Ball screw 32: C7ø8; 40: C7ø12; 50: C7ø16; 63: C7ø20; 80: C7ø32
Stroke (mm) 32: 100~400/50 Pitch; 40: 100~600/50 Pitch; 50: 100~800/50 Pitch; 63: 100~1000/50 Pitch; 80: 100~1000/50 Pitch
Anti-rotating ccuracy (°) ±0.4
Sensor switch RDC(V), RQC(V)
AC servo motor (W) 50, 100, □42; 200, 400, □56
Max. speed (mm/s) 50(100): 50~1000, 200(400): 250~1000, 750: 125~800; □42: 50~1000, □56: 250~1000
Max. thrust (N) 50(100): 35~720 (80~1600), 200(400): 170~680 (350~1400), 750: 420~2700
Max. thrust force at top speed (N) □42: 16~325, □56: 27~110
Remark *1. Special accuracy and lead are available.; *2. The rated load refers to a 10,000 km estimated service life. Please refer to the "Capacity" page in the MEQI series for information on other load conditions.; *3. Due to the characteristics of a step motor, thrust force is low at high speed. Lowering the operating speed can further increase the thrust force.
Series Mindman MEQI
