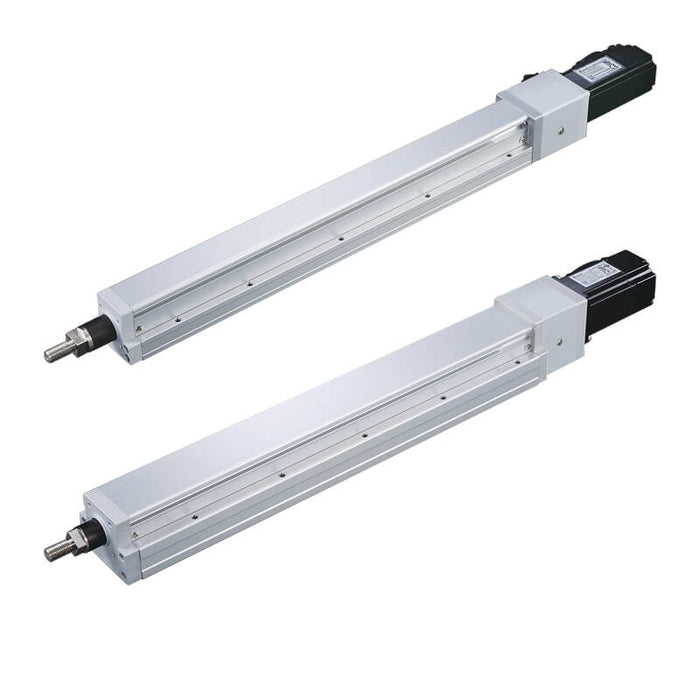

Mindman MEQG series

Mindman MEQG-5 Rod-Type Electric Actuator (without motor), Lead L20

SKU MEQG-5-L20-50-BC-(M10/P10)-E5
by Mindman
$1,512.60 - $2,409.83
$1,512.60
$1,512.60 - $2,409.83
$1,512.60
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MEQG series ball-screw rod-type electric actuator, size 5, supplied without motor.

Select the options below; the full Mindman ordering code is shown as the SKU (MEQG-5-[lead]-[stroke]-[motor position]-[flange]-[home][limit sensor]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

With 50 mm stroke the home sensor and limit sensor must be on different sides of the body.

Price is the Mindman list price.

Specifications

Size Small size: 5, 8
Repeatability (mm) ±0.01
Ball screw lead (mm) 5: 2, 5, 10, 20; 8: 5, 10, 20
Max. speed (mm/s) 5: 100, 250, 500, 1000; 8: 250, 500, 1000
Motor output 5: 100W, 8: 200W, 400W
Max. payload (kg) Horizontal: 5: 30, 30, 15, 10 Vertical: 5: 10, 10, 5, 2.5; Horizontal: 8: 50, 30, 18 Vertical: 8: 15, 8, 3
Rated thrust (N) 5: 854, 341, 170, 85; 8: 683 (1388), 341 (694), 174 (347)
Stroke / pitch (mm) 5: 50~600 / 50 pitch; 8: 50~800 / 50 pitch
Ball screw ø (mm) 5: C7ø12; 8: C7ø16
Coupling (mm) 5: 7×8; 8: 10×14/11
Home sensor (Outside) CS-6T (NPN)
Remark * Acceleration and deacceleration value is set 0.2 second.; * If payload is near maximum, it requires to collocate externally with auxiliary guideway for bearing radial load.; * () The value for power output 400W.
Series Mindman MEQG
