Mindman MEJQ series

Mindman MEJQ-20 Compact Electric Actuator, Lead 2 mm

SKU MEJQ-20L02-30-BC-CK10(015/03/05)N(015/03)
by Mindman
$1,111.59 - $2,271.57
$2,085.65
$1,111.59 - $2,271.57
$2,085.65
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

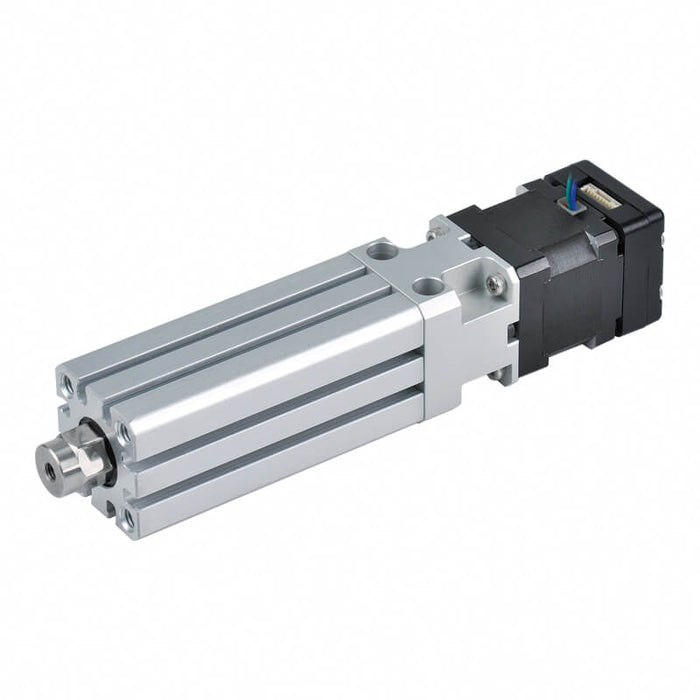

Mindman MEJQ series compact electric actuator, size 20, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MEJQ-20L02-[stroke]-[motor position][wire direction]-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Price is the Mindman list price.

Specifications

Size 16, 20
Positioning repeatability ±0.02 mm
Lead 1, 2 mm
Ball screw ø4, ø6
Stroke 30 / 50 / 75 / 100 mm
Anti-rotation tolerance ±0.7°
Sensor switch RDC(V), RQC(V)
With step motor □25, □28, □35
Max. speed ≤ 42 ~ ≤ 100 mm/s
Rated axial load(*2,3) Size 16: 0.7 kg; Size 20: 0.95 kg
Max. thrust (*4) 206 ~ 1196 N
Remark *1. Do not apply radial loads or loads in directions other than the intended movement direction to the shaft.; *2. The rated load capacity varies depending on the moving speed. Please refer to the Speed-Load Graph.; *3. The rated axial horizontal load refers to a value when the shaft is free from radial and moment loads and is supported externally by a linear guide.; *4. Thrust and operating speed are subject to variation depending on cable length, load, stroke, and mounting conditions. The thrust tolerance is ±20%. All specified values are based on 250 rpm motor operation.
Series Mindman MEJQ
