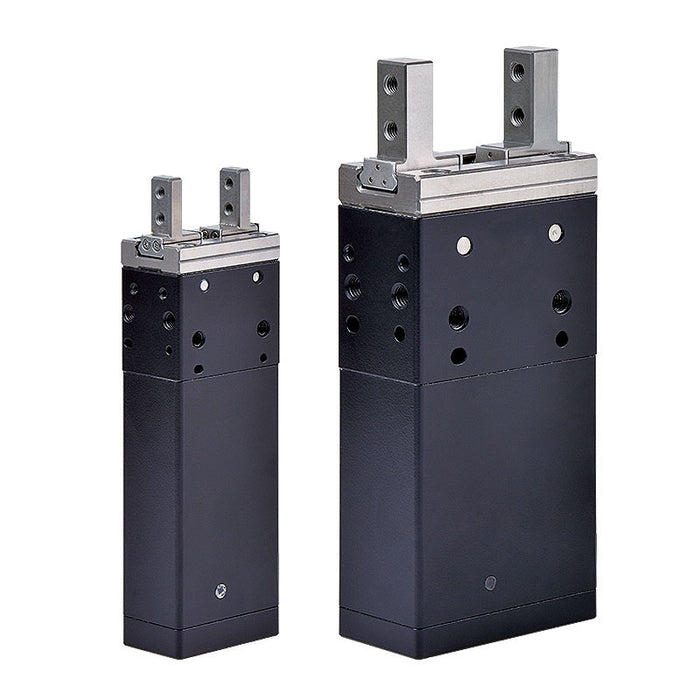

Mindman MEHC3 series

Mindman MEHC3-16 Electric Gripper

SKU MEHC3-16-005
by Mindman
$1,364.54 - $1,380.40
$1,364.54
$1,364.54 - $1,380.40
$1,364.54
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MEHC3 series electric parallel gripper, size 16, with motor.

Select the options below; the full Mindman ordering code is shown as the SKU (MEHC3-16-[jaw type]-[I/O + power cable length]).

Price is the Mindman list price.

Specifications

Size 16, 25
Total jaw stroke 6, 14
Gripping force (※1) Level 1: 12, 25N; Level 2: 17, 33N; Level 3: 22, 41N
Opening / Closing time 0.5 sec
Transmission Lead screw
Guide type Non-recirculating linear bearings
Repeatability (※2) ±0.02 mm
Operating temperature 5 ~ 40°C
Operating humidity <85%RH (Non-condensing, no dew formation)
Control method I/O, Built-in controller
I/O interface Input: 3 points (PNP), 3 points (NPN); Output: 1 point (NPN), 1 point (NPN)
Rated voltage DC24V ±10%
Power consumption (※3) Standby: 1W; Level 1: 3W; Level 2: 6, 5W; Level 3: 9, 7W
Weight 16：0.3kg, 25：0.8kg
Remark ※1: Gripping force tolerance ± 20%.; ※2: The offset value of the gripped item under the same gripping parameters.; ※3: The power consumption indicated for each gripping force level represents the instantaneous maximum power consumption.
Series Mindman MEHC3
