Mindman MEHC2 series

Mindman MEHC2-16 Electric Gripper

SKU MEHC2-16-CK10(015/03/05)N(015/03)
by Mindman
$1,613.40 - $1,613.40
$1,613.40
$1,613.40 - $1,613.40
$1,613.40
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

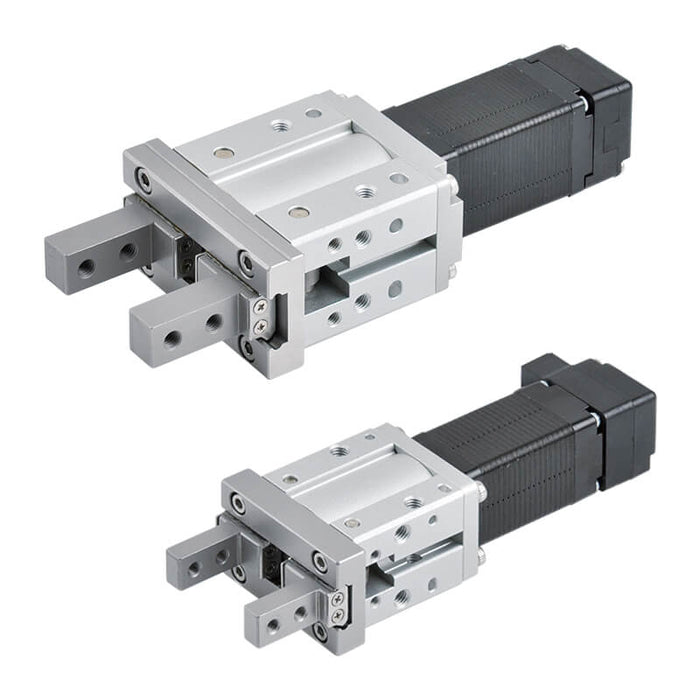

Mindman MEHC2 series electric parallel gripper, size 16, with step motor and CK10 controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MEHC2-16-[jaw type][cable entry]-CK10[cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Price is the Mindman list price.

Specifications

Size 16, 25
Gripping force (※1) 16：19.5N; 25：26N
Opening / Closing stroke (※2) 16：6mm, 25：14mm
Lead 1.5mm
Stroke (※2,3) 16：3.5mm; 25：7.4mm
Positioning repeatability (※4) ±0.02mm
Motor size 16：☐20mm; 25：☐28mm
Rated voltage DC24 V ±10%
Gripping mass (※5) 16：0.4kg; 25：0.8kg
Weight 16：222g, 25：662g
Remark ※1: Gripping force tolerance ± 20%.; ※2: The opening/ closing stroke and the movement stroke of the nut are nonlinear.; ※3: The operating stroke should be set within the range to avoid the screw getting locked.; ※4: When under same procedure, the Positioning repeatability of workpiece.; ※5: The gripping mass may change depending on the gripper attachments or friction coefficient.
Series Mindman MEHC2
