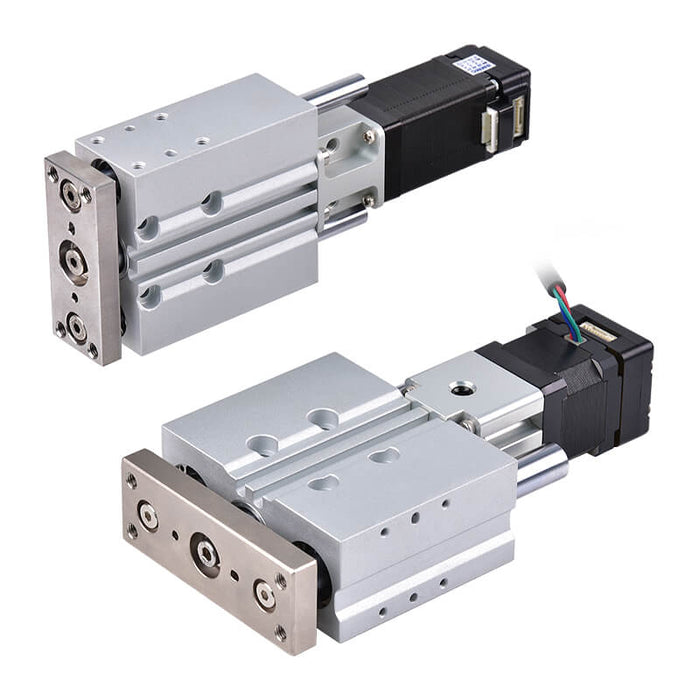

Mindman MEGS series

Mindman MEGS-20 Twin-Guided Electric Actuator, Lead 2 mm

SKU MEGS-20L02-30-BC-CK10(015/03/05)N(015/03)
by Mindman
$1,247.00 - $2,373.47
$2,340.30
$1,247.00 - $2,373.47
$2,340.30
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MEGS series twin-guided electric actuator, size 20, with step motor and controller.

Select the options below; the full Mindman ordering code is shown as the SKU (MEGS-20L02-[stroke]-BC-[controller][cables]).

Codes shown in brackets in the SKU are chosen on this page and printed on your order.

Motor, controller and step motor are included. The controller cables in the part number are priced separately: choose the lengths on this page and the matching Mindman cables are added to your cart.

Price is the Mindman list price.

Specifications

Size 16, 20
Positioning repeatability ±0.02 mm
Lead 1, 2 mm
Ball screw ø4, ø6
Stroke 30 / 50 / 75 mm
Anti-rotation tolerance ±0.06°
Sensor switch RDC(V), RQC(V)
With step motor □25, □28, □35
Max. speed SM: ≤ 50, ≤ 100 mm/s; BM: ≤ 50, ≤ 100 mm/s; OBM: ≤ 42, ≤ 84 mm/s
Rated (*1) Moment load: 0.7, 2 N.m; Axial load: 0.7, 0.95 kg
Max. thrust (*2) SM: 470, 206 N; BM: 665, 1196N
Remark *1. The rated load refers to a 10,000 km estimated service life. Please refer to page "Capacity" for information on other load conditions.; *2. Thrust and operating speed are subject to variation depending on cable length, load, stroke, and mounting conditions. The thrust tolerance is ±20%. All specified values are based on 250 rpm motor operation.
Series Mindman MEGS
