Mindman MCTA series

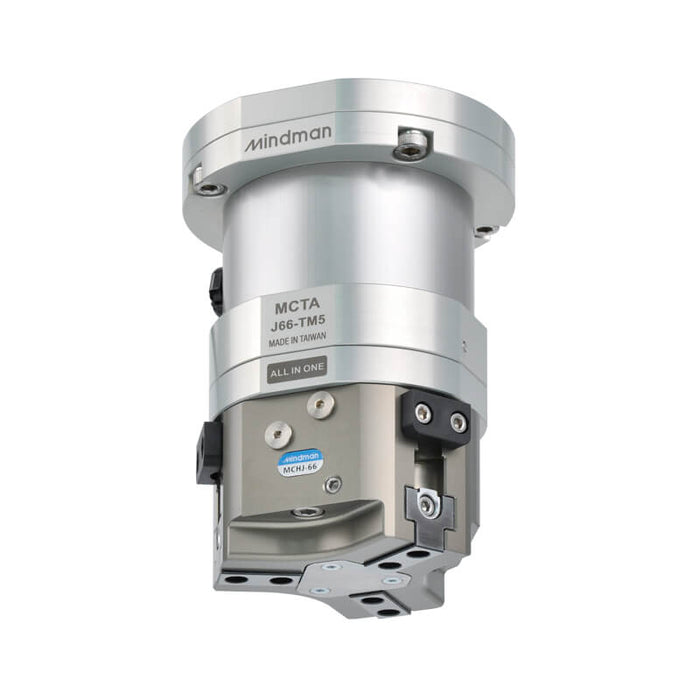

Mindman MCTA All-in-One Pneumatic Gripper for TM Robots

SKU MCTA-J66-TM5
by Mindman
$1,980.59 - $2,214.67
$2,214.67
$1,980.59 - $2,214.67
$2,214.67
Availability:
In stock
Availability:
In stock

Mindman MCTA all-in-one pneumatic gripper for TM robots (TM5/12/14): J66 = MCHJ-66 3-finger, S80 = MCHS-80 2-finger.

Select the options below; the full Mindman ordering code is shown as the SKU (MCTA-[module]-TM5).

Price is the Mindman list price.

Specifications

Acting type Double acting
Size 66, 80
Stroke per-jaw (mm) 6, 8
Effective external gripping force(N) 188, 285 (※1)
Effective internal gripping force (N) 194, 290 (※1)
Close/Open time (s) 0.03, 0.04
Medium Air
Operating pressure range 0.2~0.7 MPa, 0.3~0.7 MPa
Ambient temperature +5~+80°C
Lubrication Not required
Sensor switch RDFE: Non-contact
Accessories Accessory kits
Weight (kg) ≈1.3
Recom. work piece weight (kg) 3.8, 2.6 (※2)
Remark ※1. Under the condition of clamping length 40mm and operation pressure 0.6 MPa.; ※2. The weight limit of gripping workpiece depends on the load limit of robot arm and usage parameters.
Series Mindman MCTA
