Mindman MCSS series

Mindman MCSS-6 Slide Cylinder, ø6 mm Bore

SKU MCSS-6-10
by Mindman
$244.93 - $335.47
$244.93
$244.93 - $335.47
$244.93
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

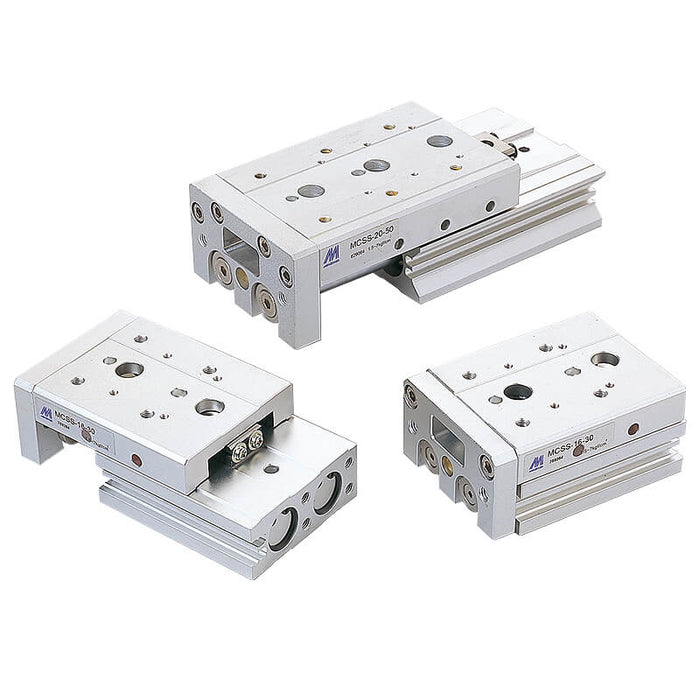

Mindman MCSS series slide cylinder, ø6 mm bore.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCSS-6-[stroke]-[adjuster][-HL]).

Built to order in Mindman's standard strokes. Adjusters have a 5 mm adjustable range (X11 15 mm / X12 25 mm versions on request).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 8, 12, 16, 20, 25
Port size M3×0.5, M5×0.8, Rc1/8
Medium Air
Operating pressure range 0.15~0.7 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubricator Not required
Cushion Rubber bumpper (Standard); Shock absorber (Option)
End lock Operating speed range: 50~500 mm/sec; Holding force (N): 25, 60, 110, 160, 250
Sensor switch RCE, RCE1, RDEP
Series Mindman MCSS
