Mindman MCSQ series

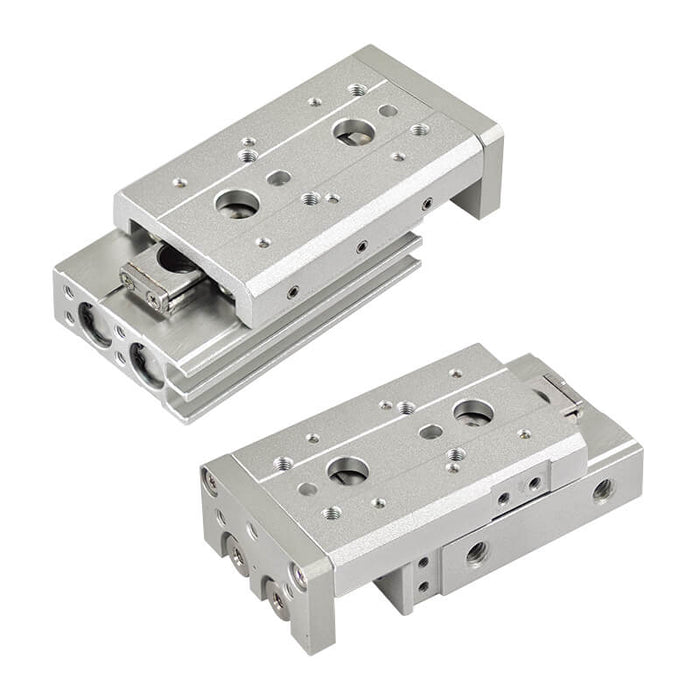

Mindman MCSQ-6 Slide Cylinder, ø6 mm Bore

SKU MCSQ-6-10
by Mindman
$311.71 - $468.95
$311.71
$311.71 - $468.95
$311.71
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCSQ series slide cylinder, ø6 mm bore.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCSQ-6-[stroke]-[adjuster][-HL]).

Built to order in Mindman's standard strokes. Adjusters have a 5 mm adjustable range (X11 15 mm / X12 25 mm versions on request).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 8
Port size M5×0.8
Medium Air
Operating pressure range 0.15~0.7 MPa
Proof pressure 1 MPa
Ambient temperature －5~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Lubricator Not required
Cushion Rubber bumpper (Standard); Shock absorber (Option)
Sensor switch RCE, RCE1, RDEP
Series Mindman MCSQ
