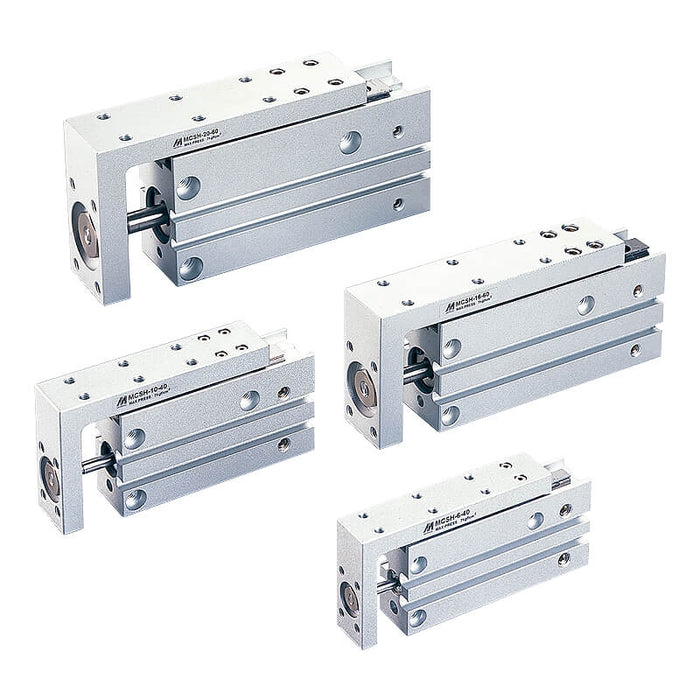

Mindman MCSH series

Mindman MCSH-10 Compact Slide Cylinder, ø10 mm Bore

SKU MCSH-10-5
by Mindman
$193.80 - $240.19
$193.80
$193.80 - $240.19
$193.80
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCSH series compact slide cylinder, ø10 mm bore.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCSH-10-[stroke]).

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 6, 10, 16, 20
Port size M5×0.8
Medium Air
Operating pressure range 0.12~0.7 MPa for φ6, 0.06~0.7 MPa for φ10,16, 0.05~0.7 MPa for φ20
Proof pressure 1.07 MPa
Ambient temperature －10~＋60℃ (No freezing)
Piston speed 50~500 mm/sec
Allowable kinetic energy 0.125~1.0 kgf.cm
Lubricator Not required
Cushion Rubber bumpper
Stroke length tolerance +1.0; 0
Sensor switch RCE, RCE1, RDEP
Series Mindman MCSH
