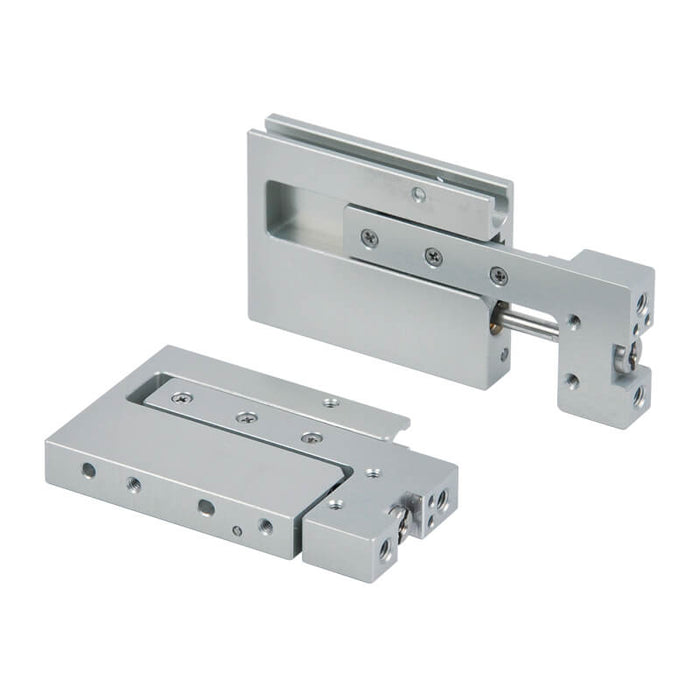

Mindman MCSF series

Mindman MCSF-8 Low-Profile Slide Cylinder, ø8 mm Bore

SKU MCSF-8-10
by Mindman
$299.85 - $317.71
$299.85
$299.85 - $317.71
$299.85
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCSF series low-profile slide cylinder, ø8 mm bore.

Choose the stroke; the full Mindman ordering code is shown as the SKU (MCSF-8-[stroke][-X11/X12]).

Made to order.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) 5.2,8,12,16,20
Stroke 10~100mm
Port size M3×0.5, M5×0.8
Air Air
Operating pressure range 0.15~0.7 MPa
Proof pressure 1 MPa
Ambient temperature －10~＋60℃ (No freezing)
Available speed range 50~500 mm/sec
Cushion spring stroke 2mm
Cushion spring pressure 0.8 at the time of withdrawal, 2 at the time of acting
Lubricator Not required
Cushion Rubber bumper
Stroke length tolerance +1.0; 0
Stroke adjuster range Extend 5mm / Retract 5mm
Sensor switch φ 5.2: RDFEV; φ 8 ~ 20: RCE, RCE1
Weight 22~1351g
Series Mindman MCSF
