Mindman MCRQ2-S-25 Rotary Table Actuator, External Cushion, ø25 mm Bore

SKU MCRQ2-S-25-1-NPT
by Mindman
$756.04 - $756.04
$756.04
$756.04 - $756.04
$756.04
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

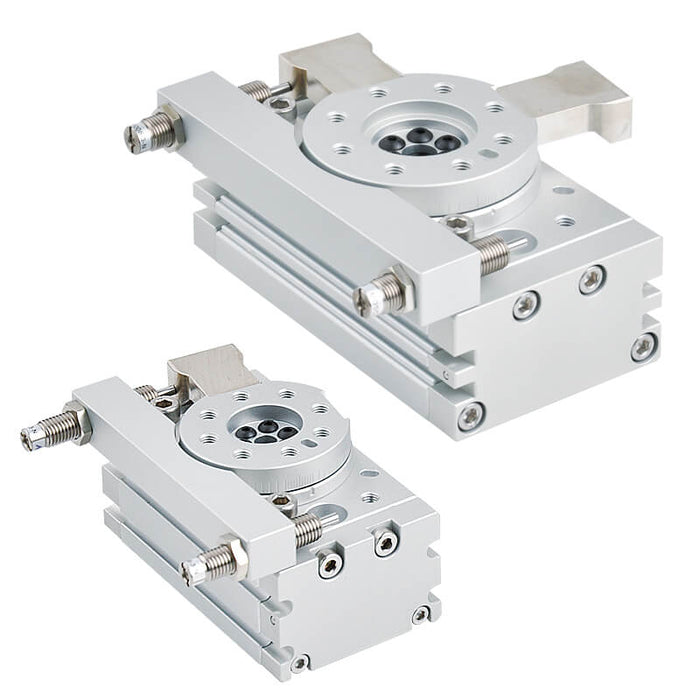

Mindman MCRQ2-S series rotary table actuator with external cushion, ø25 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRQ2-S-25-[1/2]-[thread]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) φ16, φ20, φ25
Port size φ16 (M5×0.8), φ20, φ25 (Rc1/8)
Medium Air
Rotation 90°, 180°
Max. operating pressure 1 MPa (※1)
Min. operating pressure 0.2 MPa
Ambient temperature 0~＋60℃ (No freezing)
Allowable kinetic energy (J) φ16 (0.231), φ20 (1.21), φ25 (1.82)
Rotation time adjustment range (s/90°) 0.2~1.0 (※2)
Cushion Shock absorber
Shock absorber type φ16 (MDSC-0806-3N), φ20 (MDSC-1008-3N), φ25 (MDSC-1412-3N)
Angle adjustment range Each rotation end ±3°
Weight 90°: 0.67, 1.55, 2.52 kg, 180°: 0.64, 1.48, 2.41 kg
Sensor switch RDC(V), RQC(V)
Remark ※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber.; ※2. For stable operation the time required for the rotary table to reach the rotation end after deceleration differs depending; on the operating conditions (inertial moment of the load, rotation speed, and operating pressure), however, approximately 0.2 to 2 seconds are required.
Series Mindman MCRQ2-S
