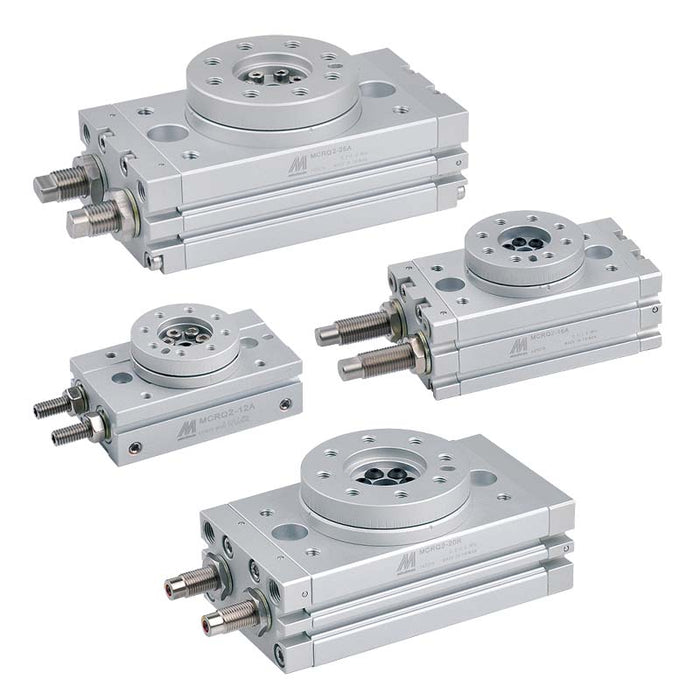

Mindman MCRQ2 series

Mindman MCRQ2-40 Rotary Table Actuator, ø40 mm Bore

SKU MCRQ2-40A-NPT
by Mindman
$892.41 - $1,348.48
$892.41
$892.41 - $1,348.48
$892.41
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRQ2 series rotary table actuator, ø40 mm bore.

Select the options below; the full Mindman ordering code is shown as the SKU (MCRQ2-40[A/R]-[thread]).

Magnet is standard (sensor-ready).

Price is the Mindman list price.

Specifications

Acting type Double acting
Tube I.D. (mm) φ12, φ16, φ20, φ25, φ32, φ40
Port size φ12, 16: M5×0.8, φ20~φ40: Rc1/8
Medium Air
Operating pressure range adjusting bolt: 0.1~1 MPa, shock absorber: 0.1~0.6 MPa (※1)
Ambient temperature 0~＋60℃
Cushion adjusting bolt: φ12~40 (Rubber bumper); shock absorber: φ16~40 (Shock absorber) (※3)
Angle adjustment range 0° to 190°(max.)(※4)
Sensor switch RDC(V), RQC(V)
Weight 0.25~7.72 kg
Remark ※1. The maximum operating pressure of the actuator is restricted by the maximum allowable thrust of the shock absorber.; ※2. No-load conditions.; ※3. The shock absorber is expendable. Replace when damping performance decrease.; ※4. Be careful if the rotation angle of a type with internal shock absorber is set below the value in the table below, the piston stroke will be smaller than the shock absorber’s effective stroke, resulting in decreased energy absorption ability.
Series Mindman MCRQ2
