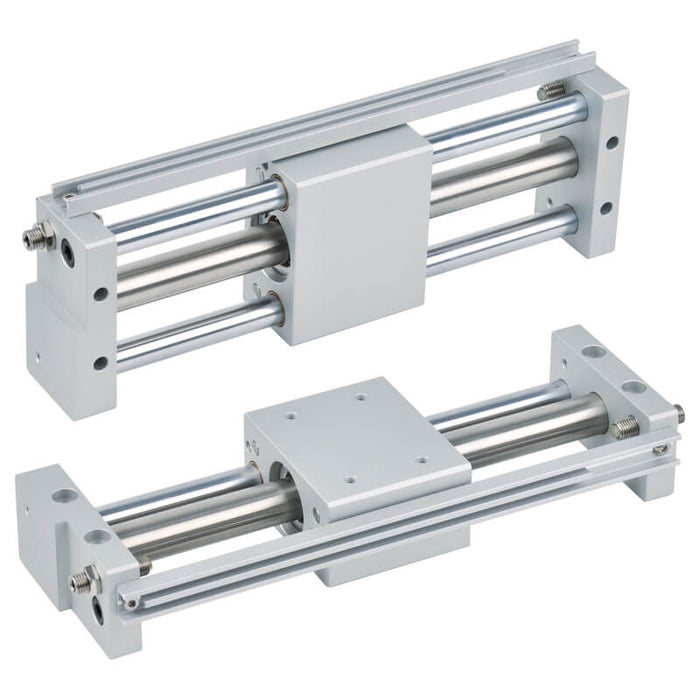

Mindman MCRPMS series

Mindman MCRPMS-15 Magnetically Coupled Rodless Slide, Bilateral piping, ø15 mm Bore

SKU MCRPMS-15-(1-100)
by Mindman
$293.83 - $627.14
$293.83
$293.83 - $627.14
$293.83
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPMS series rodless cylinder, ø15 mm bore.

Stroke: available from 1 to 750 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPMS-15-[stroke][M][-B/C]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

ø10 and ø15 have M5×0.8 ports.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D. (mm) φ10, 15, 20, 25, 32
Port size φ10, 15: M5×0.8, φ20, 25, 32: Rc1/8
Medium Air
Operating pressure range Standard: 0.2~0.7 MPa; Cushion(※1): 0.2~0.65 MPa
Proof pressure 1 MPa
Ambient Temperature ＋5℃ ~ ＋60℃
Lubrication Without lubrication
Available speed range Standard grease: 150~400 mm/sec (※2); Slow motion grease: 80~150 mm/sec (※2,3)
Holding force φ10: 53.9N, φ15: 137N; φ20: 231N, φ25: 363N, φ32: 588N
Shock absorbers φ10, 15: MDSC-0806-3-N, φ20: MAC-1007-SN; φ25: MAC-1412-SN, φ32: MAC-2015-SN
Sensor Switch RDC(V), RQC(V), RCD, RDFE
Remark ※1. Exceeding the allowable pressure will lead to the breaking of the magnetic coupling and cause the piston slider and external slider becoming separated.; ※2. The cylinder must be connected to a speed controller and gradually adjusted from fully closed to achieve the desired operating speed within the designed range.; ※2. Between the speed range limit the actuator stroke must not exceed to 2m/minute.
Series Mindman MCRPMS
