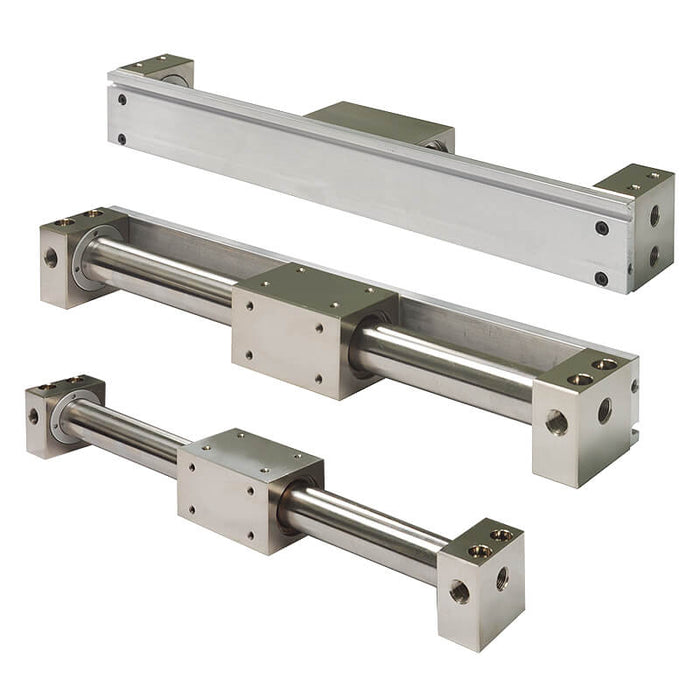

Mindman MCRPMD series

Mindman MCRPMD-15 Magnetically Coupled Rodless Cylinder with Guide, ø15 mm Bore

SKU MCRPMD-15-(1-100)
by Mindman
$249.44 - $330.94
$249.44
$249.44 - $330.94
$249.44
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Mindman MCRPMD series rodless cylinder, ø15 mm bore.

Stroke: available from 1 to 700 mm. Pick the stroke range, then enter the exact stroke you need in the Required stroke box – it is added to your order and completes the Mindman ordering code (MCRPMD-15-[stroke][-A]; the SKU shows the stroke range in brackets). Price is the Mindman list price for the longest stroke in the selected range.

Standard type (magnets & switch rail). ø10 and ø15 have M5×0.8 ports.

Mounting brackets, rod-end connectors and sensor switches are sold separately.

Specifications

Acting type Double acting
Tube I.D.(mm) φ10, φ15, φ20, φ25, φ32
Port size M5×0.8, Rc1/8
Medium Air
Operating pressure range 0.18~0.7 MPa
Proof pressure 1 MPa
Ambient Temperature ＋5℃ ~ ＋60℃
Lubrication Without lubrication
Available speed range Standard grease: 100~500 mm/sec (※1); Slow motion grease: 60~100 mm/sec (※1,2)
Holding force φ10: 53.9N, φ15: 137N, φ20: 231N, φ25: 363N, φ20: 588N
Sensor Switch φ10: RDC(V), RQC(V), RDFE(V); φ15~32: RCE, RCE1
Remark ※1. The cylinder must be connected to a speed controller and graduallyadjusted from fully closed to achieve the desired operating speed within the designed range.; ※2. Between the speed range limit the actuator stroke must not exceed to 2m/minute.
Series Mindman MCRPMD
